48

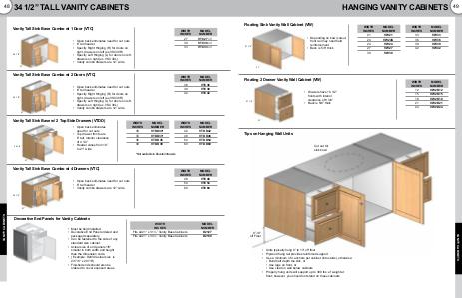

34 1/2” TALL VANITY CABINETS
Vanity Tall Sink Base Combo w/ 1 Door (VTC)
• Open back eliminates need for cut outs
• 6” tall header
• Specify Right Hinging (R) for doors on
right, drawers on left (ex.VSC30R)
• Specify Left Hinging (L) for doors on left,
drawers on right (ex. VSC30L)
• Vanity combo drawers are 12” wide
34 1/2”
WIDTH
INCHES
27
30
33
MODEL
NUMBER
VTC27L/R
VTC30L/R
VTC33L/R
WIDTH
INCHES
36
39
42
MODEL
NUMBER
VTC36
VTC39
VTC42
WIDTH
INCHES
42
48
54
60
MODEL
NUMBER
VTDD42
VTDD48
VTDD54
VTDD60
WIDTH
INCHES
48
54
60
MODEL
NUMBER
VTC48
VTC54
VTC60
21”
Vanity Tall Sink Base Combo w/ 2 Doors (VTC)
• Open back eliminates need for cut outs
• 6” tall header
• Specify Right Hinging (R) for doors on
right, drawers on left (ex.VSC30R)
• Specify Left Hinging (L) for doors on left,
drawers on right (ex. VSC30L)
• Vanity combo drawers are 12” wide
34 1/2”
21”
Vanity Tall Sink Base w/ 2 Top Side Drawers (VTDD)
• Open back eliminates
need for cut outs
• Top drawer fronts are
6” tall, interior clearance
of 4 1/4”
• Header varies from 18”
to 21” wide
34 1/2”
WIDTH
INCHES
30
33
36
39
MODEL
NUMBER
VTDD30*
VTDD33*
VTDD36
VTDD39
*Not available in Dovetail drawers
21”
Vanity Tall Sink Base Combo w/ 4 Drawers (VTC)
• Open back eliminates need for cut outs
• 6” tall header
• Vanity combo drawers are 12” wide
34 1/2”
VANITY CABINETS
21”
Decorative End Panels for Vanity Cabinets
BASE• CABINET
END
PANEL
Must be field
installed.
• Decorative
and Cabinets
Fits allEnd
21” xPanel
31 ½”ordered
Vanity Base
D2127
WIDTH
INCHES
Fits all 21” x 31 ½” Vanity Base Cabinets
Fits all 21” x 34 ½” Vanity Base Cabinets
packaged
separately.
Fits all 21” x 34 ½” Vanity Base Cabinets
• Can be fastened to the side of any
standard
size
cabinet.
• Decorative
End
Panel
ordered and packaged separately.
• Actual
sizetoofthe
end
panels
• Can
be fasten
side
of any1/8”
standard size cabinet.
smaller
in end
bothpanels
width1/8”
andsmaller
height than the dimension code.
• Actual
size of
than theD2430
dimension
( Example:
actualcode.
size is 20 7/8” x 26 7/8”)
• ( Example: D2430 actual size is
23 7/8” x 29 7/8”)
• Finished ends should also be
ordered to cover exposed areas
D2130
MODEL
NUMBER
D2127
D2130
