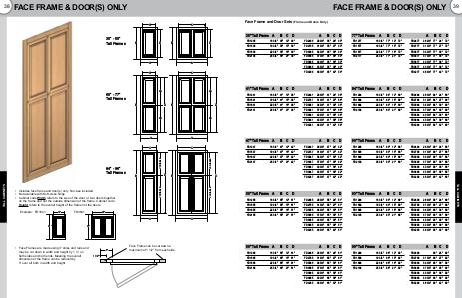

RSI PCS Product Specification Guide V2 - March 2015 | Page 39

FACE FRAME & DOOR(S) ONLY

39

Face Frame and Door Sets (Frame and Doors Only)

35” Tall Frame

A

B C D

A

B C D

77” Tall Frame

A

B C D

A

B C D

FD1235

16 3/4" 35" 12" 30"

FD2435

28 3/4" 35" 24" 30"

FD1277

16 3/4" 77" 12" 72"

FD2477

28 3/4" 77" 24" 72"

FD1535

19 3/4" 35" 15" 30"

FD2735

31 3/4" 35" 27" 30"

FD1577

19 3/4" 77" 15" 72"

FD2777

31 3/4" 77" 27" 72"

FD1835

22 3/4" 35" 18" 30"

FD3035

34 3/4" 35" 30" 30"

FD1877

22 3/4" 77" 18" 72"

FD3077

34 3/4" 77" 30" 72"

FD2135

25 3/4" 35" 21" 30"

FD3335

37 3/4" 35" 33" 30"

FD2177

25 3/4" 77" 21" 72"

FD3377

37 3/4" 77" 33" 72"

FD3635

40 3/4" 35" 36" 30"

FD3677

40 3/4" 77" 36" 72"

FD3935

43 3/4" 35" 39" 30"

FD3977

43 3/4" 77" 39" 72"

FD4235

46 3/4" 35" 42" 30"

FD4277

46 3/4" 77" 42" 72"

41” Tall Frame

A

B C D

A

B C D

84” Tall Frame

A

B C D

A

B C D

FD1241

16 3/4" 41" 12" 36"

FD2441

28 3/4" 41" 24" 36"

FD1284

16 3/4" 84" 12" 80"

FD2484

28 3/4" 84" 24" 80"

FD1541

19 3/4" 41" 15" 36"

FD2741

31 3/4" 41" 27" 36"

FD1584

19 3/4" 84" 15" 80"

FD2784

31 3/4" 84" 27" 80"

FD1841

22 3/4" 41" 18" 36"

FD3041

34 3/4" 41" 30" 36"

FD1884

22 3/4" 84" 18" 80"

FD3084

34 3/4" 84" 30" 80"

FD2141

25 3/4" 41" 21" 36"

FD3341

37 3/4" 41" 33" 36"

FD2184

25 3/4" 84" 21" 80"

FD3384

37 3/4" 84" 33" 80"

FD3641

40 3/4" 41"
