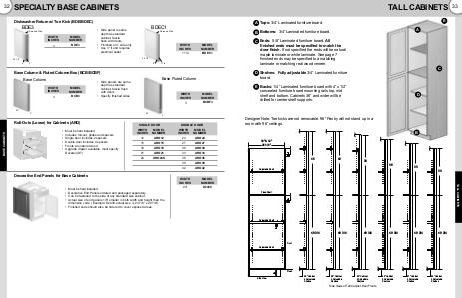

TALL CABINETS
33
E
A Tops: 3/4” Laminated furniture board.
A
B Bottoms: 3/4” Laminated furniture board.
C Ends: 5/8” Laminated furniture board. All
finished ends must be specified to match the
door finish. If not specified the ends will be natural
maple laminate or white laminate. See page 7
finished ends may be specified to a matching
laminate or matching real wood veneer.
C
D Shelves: Fully adjustable 3/4” Laminated furniture
board.
E Backs: 1/4” Laminated furniture board with 4” x 1/2”
concealed furniture board mounting rails top, mid
shelf and bottom. Cabinets 36” and wider will be
drilled for center shelf supports.
D
Designer Note: Toe kicks are not removable. 96” Pantry will not stand up in a
room with 96” ceilings.
B
18” & 12”
23 3/4”
45
42
39
36
Adjustable Shelf
33
30
TALL CABINETS
Fixed Shelf
Adjustable Shelf
49 3/4
49 3/4
49 3/4
49 3/4
49 3/4
49 3/4
Door
Adjustable Shelf
Flush
Side View
99” Cabinet
4 Adjustable
Shelves
96” Cabinet
4 Adjustable
Shelves
93” Cabinet
4 Adjustable
Shelves
Side Views of Tall Cabinet Door Fronts
90” Cabinet
3 Adjustable
Shelves
87” Cabinet
3 Adjustable
Shelves
84” Cabinet
3 Adjustable
Shelves
