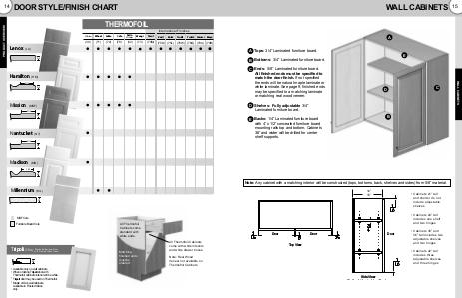

WALL CABINETS
15
A
A Tops: 3/4” Laminated furniture board.
E
B Bottoms: 3/4” Laminated furniture board.
C
D
D Shelves: Fully adjustable 3/4”
Laminated furniture board.
B
E Backs: 1/4” Laminated furniture board
with 4” x 1/2” concealed furniture board
mounting rails top and bottom. Cabinets
36” and wider will be drilled for center
shelf supports.
Note: Any cabinet with a matching interior will be constructed (tops, bottoms, back, shelves and sides) from 5/8” material.
12”
15”
• Cabinets 21” tall
and shorter do not
include adjustable
shelves
• Cabinets 24” tall
includes one shelf
and two hinges
Door
Door
Top View
Door
Door
Door
Top View
• Cabinets 30” and
36” tall includes two
adjustable shelves
and two hinges
Door
• Cabinets 42” tall
includes three
adjustable shelves
and three hinges
Side View
Side View
FullyShelves
Adjustable Shelves
Fully Adjustable
WALL CABINETS
C Ends: 5/8” Laminated furniture board.
All finished ends must be specified to
match the door finish. If not specified
the ends will be natural maple laminate or
white laminate. See page 9, finished ends
may be specified to a matching laminate
or matching real wood veneer.
