Programmatic Organization Level 3 + 4
Atrium Core ADA Private Rooms Typical Single Room Typical Double Room Family Suite Transition Lounge Conference Room
01 02 03 04 05 06 07
ADA Double Room Vertical Circulation Third Level Bridge
08 09 10
Church Street Connector
09
03
03
03 03
02
Dye House Event Space
03 01
06
10 05 08 04 04
09
Middle Building Residents
07 09

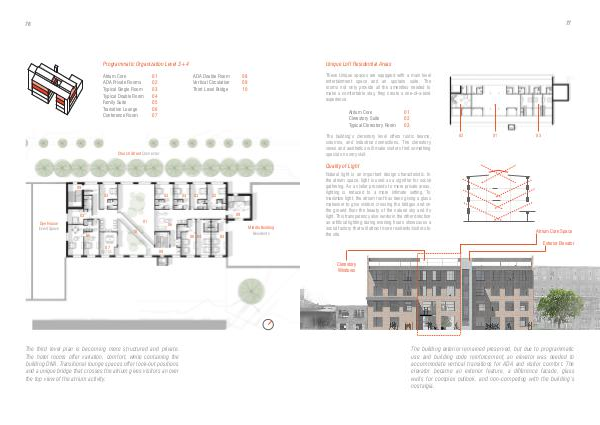

The third level plan is becoming more structured and private. The hotel rooms offer variation, comfort, while containing the building DNA. Transitional lounge spaces offer look-out positions and a unique bridge that crosses the atrium gives visitors an over the top view of the atrium activity.
