Programmatic Organization Level 1
Atrium Core Restaurant( shared) Bar and Lounge Hotel Check-In Gift Shop Cafe Restrooms
01 02 03 04 05 06 07
Full-Service Kitchen Vertical Circulation Administration Storage Bicycle Parking
08 09 10 11 12
Church Street Connector
09
12
03
11
05
Dye House Event Space
11
07
07
02
01 04
11
10
07
07
06
09
Middle Building Residents
12
09
11
11 08
Courtyard Event Space
Flat Iron Building Incubator

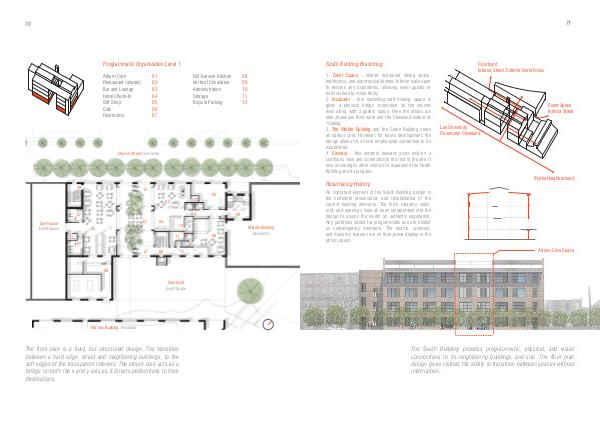

The floor plan is a fluid, but structured design. The transition between a hard edge, street and neighboring buildings, to the soft edges of the transparent interiors. The atrium core acts as a bridge on both the x and y axis as it directs pedestrians to their destinations.
