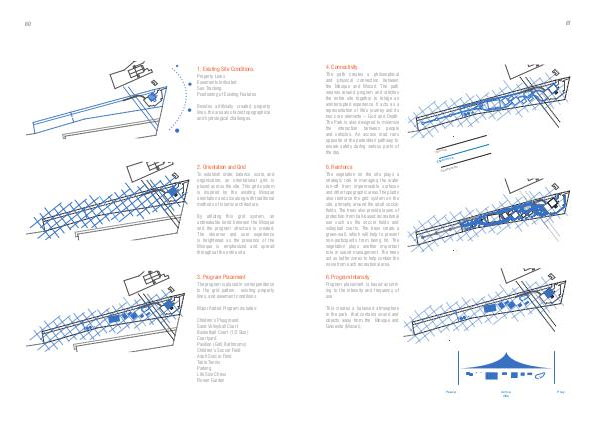

1. Existing Site Conditions Property Lines Easements Indicated Sun Tracking Positioning of Existing Features
Besides artificially created property lines, the area also faced topographical and hydrological challenges.
2. Orientation and Grid To establish order, balance, scale, and organization, an orientational grid is placed across the site. This grid system is inspired by the existing Mosque orientation and size along with traditional methods of Islamic architecture.
By utilizing this grid system, an unbreakable bond between the Mosque and the program structure is created. The observer and user experience is heightened as the presence of the Mosque is emphasized and spread throughout the entire site.
3. Program Placement The program is placed in correspondence to the grid pattern, existing property lines, and easement conditions.
Major Added Program includes:
Children’ s Playground Sand Volleyball Court Basketball Court( 1 / 2 Size) Courtyard Pavilion( Grill, Bathrooms) Children’ s Soccer Field Adult Soccer Field Table Tennis Parking Life Size Chess Flower Garden
