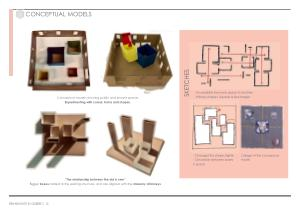

CONCEPTUAL MODELS Conceptual models showing public and private spaces Experimenting with colour, forms and shapes. SKETCHES - Accessibility from one space to another - Primary shapes: Squares & Rectangles - Changed the shape slightly - Circulation between boxes in space Collage of the conceptual model “The relationship between the old & new” Bigger boxes added to the existing structure, and are aligned with the masonry chimneys REHABILITATE IN QUEBEC l 12
