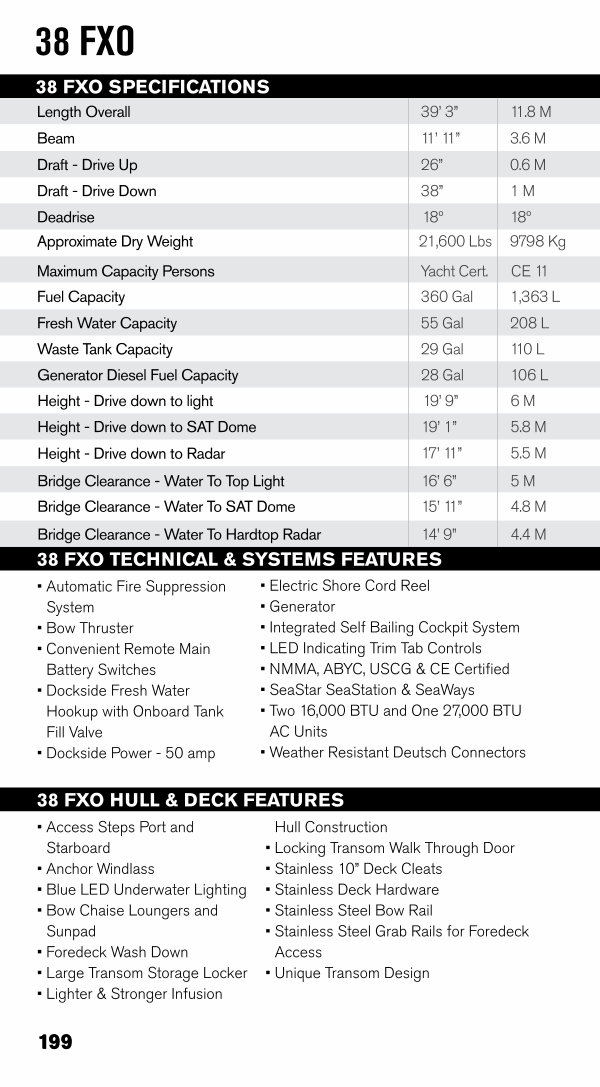

38 FXO
|
38 FXO SPECIFICATIONS
Length Overall
|
39’ 3” |
11.8 M |
Beam |
11’ 11” |
3.6 M |
|
Draft- Drive Up
Draft- Drive Down
|
26” 38” |
0.6 M 1 M |
Deadrise |
18 º |
18 º |
Approximate Dry Weight |
21,600 Lbs |
9798 Kg |
Maximum Capacity Persons Fuel Capacity Fresh Water Capacity Waste Tank Capacity Generator Diesel Fuel Capacity Height- Drive down to light Height- Drive down to SAT Dome Height- Drive down to Radar Bridge Clearance- Water To Top Light Bridge Clearance- Water To SAT Dome
Yacht Cert. |
CE 11 |
|
360 Gal
55 Gal
|
1,363 L
208 L
|
29 Gal |
110 L |
28 Gal |
106 L |
19’ 9” |
6 M |
19’ 1” |
5.8 M |
17’ 11” |
5.5 M |
16’ 6” |
5 M |
15’ 11” |
4.8 M |
Bridge Clearance- Water To Hardtop Radar
14’ 9”
38 FXO TECHNICAL & SYSTEMS FEATURES
• Automatic Fire Suppression System
• Bow Thruster
• Convenient Remote Main Battery Switches
• Dockside Fresh Water Hookup with Onboard Tank Fill Valve
• Dockside Power- 50 amp
4.4 M
• Electric Shore Cord Reel
• Generator
• Integrated Self Bailing Cockpit System
• LED Indicating Trim Tab Controls
• NMMA, ABYC, USCG & CE Certified
• SeaStar SeaStation & SeaWays
• Two 16,000 BTU and One 27,000 BTU AC Units
• Weather Resistant Deutsch Connectors
38 FXO HULL & DECK FEATURES
• Access Steps Port and Starboard
• Anchor Windlass
• Blue LED Underwater Lighting
• Bow Chaise Loungers and Sunpad
• Foredeck Wash Down
• Large Transom Storage Locker
• Lighter & Stronger Infusion
Hull Construction
• Locking Transom Walk Through Door
• Stainless 10” Deck Cleats
• Stainless Deck Hardware
• Stainless Steel Bow Rail
• Stainless Steel Grab Rails for Foredeck Access
• Unique Transom Design
199
