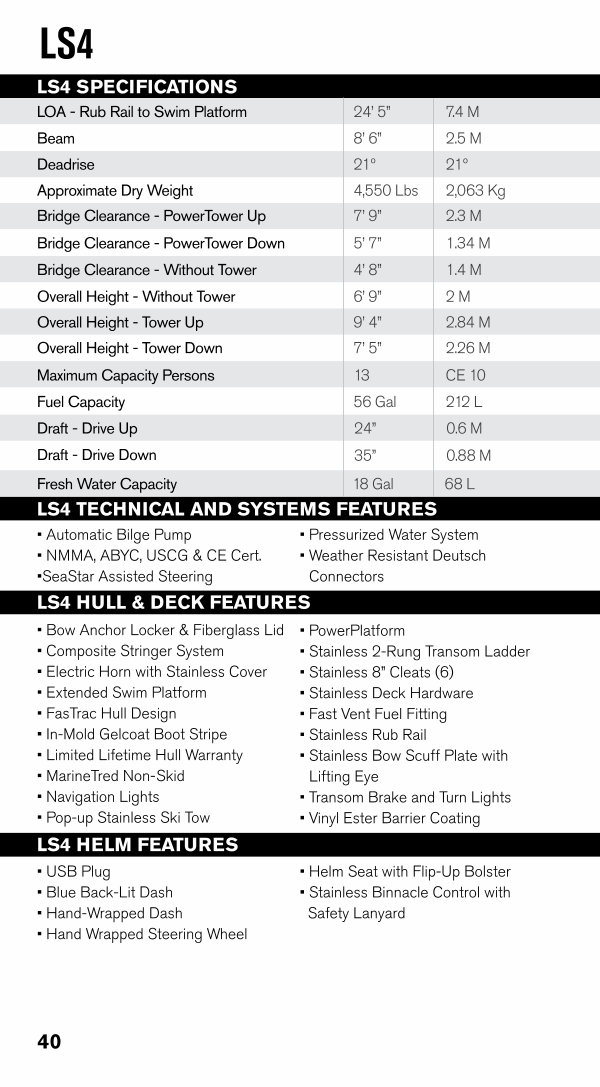

LS4
|
LS4 SPECIFICATIONS
LOA- Rub Rail to Swim Platform
|
24’ 5” |
7.4 M |
Beam |
8’ 6” |
2.5 M |
Deadrise |
21 º |
21 º |
Approximate Dry Weight |
4,550 Lbs |
2,063 Kg |
Bridge Clearance- PowerTower Up |
7’ 9” |
2.3 M |
Bridge Clearance- PowerTower Down Bridge Clearance- Without Tower Overall Height- Without Tower Overall Height- Tower Up Overall Height- Tower Down
5’ 7” 4’ 8” 6’ 9” 9’ 4” 7’ 5”
1.34 M 1.4 M 2 M 2.84 M 2.26 M
Maximum Capacity Persons Fuel Capacity Draft- Drive Up Draft- Drive Down
13 |
CE 10 |
56 Gal |
212 L |
24” |
0.6 M |
35” |
0.88 M |
Fresh Water Capacity
18 Gal 68 L
LS4 TECHNICAL AND SYSTEMS FEATURES
• Automatic Bilge Pump
• NMMA, ABYC, USCG & CE Cert.
• SeaStar Assisted Steering
LS4 HULL & DECK FEATURES
• Bow Anchor Locker & Fiberglass Lid
• Composite Stringer System
• Electric Horn with Stainless Cover
• Extended Swim Platform
• FasTrac Hull Design
• In-Mold Gelcoat Boot Stripe
• Limited Lifetime Hull Warranty
• MarineTred Non-Skid
• Navigation Lights
• Pop-up Stainless Ski Tow
LS4 HELM FEATURES
• USB Plug
• Blue Back-Lit Dash
• Hand-Wrapped Dash
• Hand Wrapped Steering Wheel
• Pressurized Water System
• Weather Resistant Deutsch Connectors
• PowerPlatform
• Stainless 2-Rung Transom Ladder
• Stainless 8” Cleats( 6)
• Stainless Deck Hardware
• Fast Vent Fuel Fitting
• Stainless Rub Rail
• Stainless Bow Scuff Plate with Lifting Eye
• Transom Brake and Turn Lights
• Vinyl Ester Barrier Coating
• Helm Seat with Flip-Up Bolster
• Stainless Binnacle Control with Safety Lanyard
40
