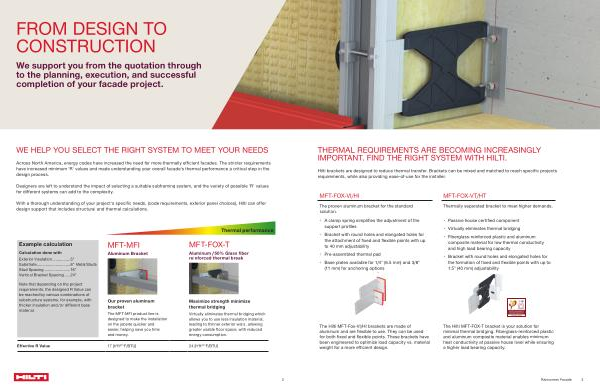

THERMAL REQUIREMENTS ARE BECOMING INCREASINGLY IMPORTANT . FIND THE RIGHT SYSTEM WITH HILTI .
Hilti brackets are designed to reduce thermal transfer . Brackets can be mixed and matched to reach specific projects requirements , while also providing ease-of-use for the installer .
MFT-FOX-VI / HI
The proven aluminum bracket for the standard solution .
• A clamp spring simplifies the adjustment of the support profiles
• Bracket with round holes and elongated holes for the attachment of fixed and flexible points with up to 40 mm adjustability
• Pre-assembled thermal pad
• Base plates available for 1 / 4 " ( 6.5 mm ) and 3 / 8 " ( 11 mm concrete ) for anchoring and masonry options
MFT-FOX-VT / HT
Thermally separated bracket to meet higher demands .
• Passive house certified component
• Virtually eliminates thermal bridging
• Fiberglass-reinforced plastic and aluminum composite material for low thermal conductivity and high load bearing capacity
• Bracket with round holes and elongated holes for the formation of fixed and flexible points with up to 1.5 " ( 40 mm ) adjustability
The Hilti brackets from the MFT MFI The Hilti MFT-Fox-VI / HI brackets are made of aluminum and are flexible to use . They can be used for both fixed and flexible points . These brackets have been engineered to optimize load capacity vs . material weight for a more efficient design .
The Hilti MFT-FOX VT bracket is your The Hilti MFT-FOX-T bracket is your solution for minimal thermal bridging . Fiberglass-reinforced plastic and aluminum composite material enables minimum heat conductivity at passive house level while ensuring a higher load bearing capacity .
Rainscreen Facade 3
