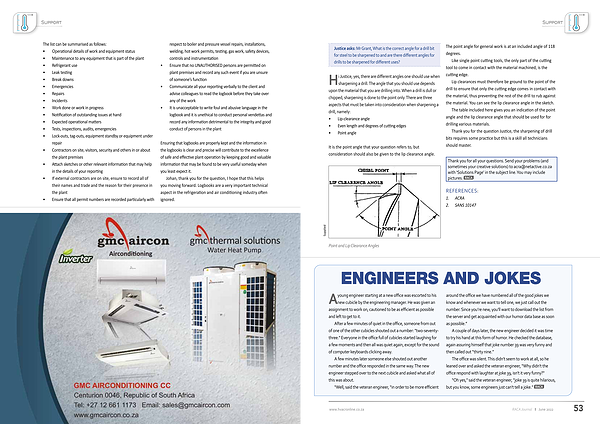

Justice asks : Mr Grant , What is the correct angle for a drill bit for steel to be sharpened to and are there different angles for drills to be sharpened for different uses ?
Hi Justice , yes , there are different angles one should use when sharpening a drill . The angle that you should use depends upon the material that you are drilling into . When a drill is dull or chipped , sharpening is done to the point only . There are three aspects that must be taken into consideration when sharpening a drill , namely :
• Lip-clearance angle
• Even length and degrees of cutting edges
• Point angle
It is the point angle that your question refers to , but consideration should also be given to the lip clearance angle .
The point angle for general work is at an included angle of 118 degrees .
Like single point cutting tools , the only part of the cutting tool to come in contact with the material machined , is the cutting edge .
Lip clearances must therefore be ground to the point of the drill to ensure that only the cutting edge comes in contact with the material , thus preventing the rest of the drill to rub against the material . You can see the lip clearance angle in the sketch .
The table included here gives you an indication of the point angle and the lip clearance angle that should be used for for drilling various materials .
Thank you for the question Justice , the sharpening of drill bits requires some practice but this is a skill all technicians should master .
Thank you for all your questions . Send your problems ( and sometimes your creative solutions ) to acra @ netactive . co . za with ‘ Solutions Page ’ in the subject line . You may include pictures . RACA
REFERENCES : 1 . ACRA 2 . SANS 10147
Supplied
Point and Lip Clearance Angles
