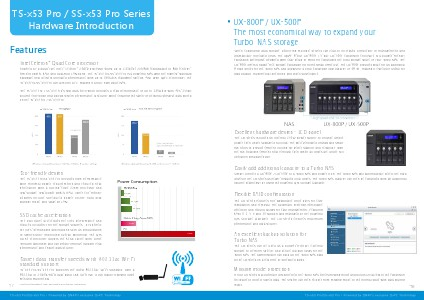

TS-x53 Pro / SS-x53 Pro Series
Hardware Introduction
Features
Intel Celeron® Quad Core processor
Powered by a quad-core Intel® Celeron® 2.0GHz processor (burst up to 2.41GHz), 2/4/8GB (expandable to 8GB) energyefficient DDR3L RAM and dual/four LAN ports, the TS-x53 Pro/SS-x53 Pro is a powerful NAS with the highest-standard
hardware that delivers unrivaled performance with up to 430MB/s read/write speeds. Also, with QvPC technology, the
TS-x53 Pro/SS-x53 Pro can turn into a PC, making it a truly high value NAS.
The TS-x53 Pro / SS-x53 Pro's fast data encryption provides a read performance of up to 240MB/s with AES-256bit
volume encryption that boosts system performance & security while ensuring the safety of personal sensitive data stored
on the TS-x53 Pro / SS-x53 Pro.
TS-853 Pro
TS-853 Pro
Eco-friendly design
The TS-x53 Pro/SS-x53 Pro provides high performance
with minimal power requirements and reduced heat
generation with a cutting-edge 22 nm processor and
low-voltage, low-power DDR3L RAM. Other eco-friendly
designs include scheduled power on/off, hard disk
standby mode, and Wake on LAN.
Power Consumption
TS-253 Pro
0.74W
S3 Sleep Mode
10.14W
with HDD standby
16.34W
SSD cache acceleration
The SSD cache accelerates the IOPS performance and
reduces I/O latency for the storage volumes*. It is perfect
for IOPS-demanding applications such as virtualization
in significantly improving overall workflow. The QTS
cache technology adopts the Read Cache with Write
Through algorithm and can greatly improve random read
performance and ensure data security.
In operation
Other 2-bay Atom NAS
23W
In operation
PC
150W
Faster data transfer speeds with 802.11ac Wi-Fi
standard support
TS-x53 Pro/SS-x53 Pro supports the latest 802.11ac Wi-Fi standard. With a
802.11ac or 2.4GHz/5GHz dual-band USB Wi-Fi NIC, it can rapidly transmit large
files and multimedia.
47
* System performance may vary based on network conditions
TS-x53 Pro/SS-x53 Pro，Powered by QNAP's exclusive QvPC Technology
802.11ac
