A SOFTWARE SOLUTION FOR ANALYSIS AND CERTIFICATION
MAIN MENU APPLICATIONS SECTION
Application selection, certificate settings and
application scheduler. Bar charts showing the readings from each analyzer.

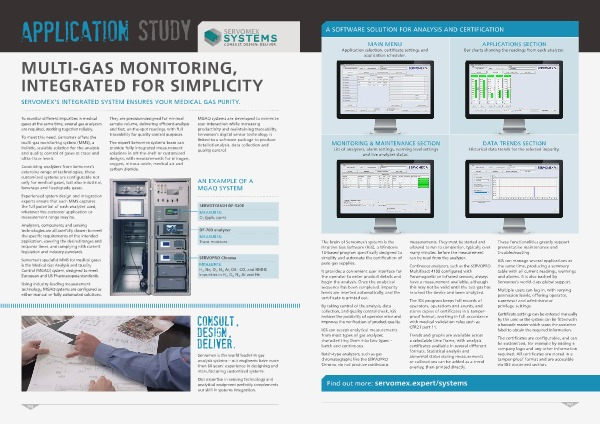

MULTI-GAS MONITORING,
INTEGRATED FOR SIMPLICITY
SERVOMEX'S INTEGRATED SYSTEM ENSURES YOUR MEDICAL GAS PURITY.
To monitor different impurities in medical
gases at the same time, several gas analyzers
are required, working together reliably.
To meet this need, Servomex offers the
multi-gas monitoring system (MMS), a
holistic, scalable solution for the analysis
and quality control of gases at trace and
ultra-trace levels.
Combining analyzers from Servomex’s
extensive range of technologies, these
customized systems are configurable not
only for medical gases, but also industrial,
beverage and food-grade gases.
Experienced system design and integration
experts ensure that each MMS captures
the full potential of each analyzer used,
whatever the customer application or
measurement range may be.
Analyzers, components and sensing
technologies are all carefully chosen to meet
the specific requirements of the intended
application, covering the desired ranges and
response times, and complying with current
legislation and industry standards.
Servomex’s specialist MMS for medical gases
is the Medical Gas Analysis and Quality
Control (MGAQ) system, designed to meet
European and US Pharmacopeia standards.
They are precision-designed for minimal
sample volume, delivering efficient analysis
and fast, on-the-spot readings, with full
traceability for quality control purposes.
The expert Servomex systems team can
provide fully integrated measurement
solutions in off-the-shelf or customized
designs, with measurements for nitrogen,
oxygen, nitrous oxide, medical air and
carbon dioxide.
MGAQ systems are developed to minimize
user interaction while increasing
productivity and maintaining traceability.
Servomex’s digital sensor technology is
linked to a software package to produce
detailed analysis, data collection and
quality control.
DATA TRENDS SECTION
List of analyzers, alarm settings, warning level settings
and live analyzer status. Historical data trends for the selected impurity.
AN EXAMPLE OF A
MGAQ SYSTEM
SERVOTOUGH DF-320E
MEASURES:
O 2 (ppb, ppm)
DF-700 analyzer
MEASURES:
Trace moisture
SERVOPRO Chroma
MEASURES:
H 2 , Ne, O 2 , N 2 , Ar, CH 4 , CO 2 and NMHC
impurities in H 2 , O 2 , N 2 , Ar and He
Using industry-leading measurement
technology, MGAQ systems are configured as
either manual or fully automated solutions.
CONSULT,
DESIGN,
DELIVER.
Servomex is the world leader in gas
analysis systems – our engineers have more
than 60 years’ experience in designing and
manufacturing customized systems.
Our expertise in sensing technology and
analytical equipment perfectly complements
our skill in systems integration.
P08
MONITORING & MAINTENANCE SECTION
The brain of Servomex’s systems is the
Intuitive Gas Software (IGS), a Windows
10-based program specifically designed to
simplify and automate the certification of
pure gas supplies.
It provides a convenient user interface for
the operator to enter product details and
begin the analysis. Once the analytical
sequence has been completed, impurity
levels are inserted automatically, and the
certificate is printed out.
By taking control of the analysis, data
collection, and quality control check, IGS
reduces the possibility of operator error and
improves the verification of product quality.
IGS can accept analytical measurements
from most types of gas analyzer,
characterizing them into two types –
batch and continuous.
Batch-type analyzers, such as gas
chromatographs like the SERVOPRO
Chroma, do not produce continuous
measurements. They must be started and
allowed to run to completion, typically over
many minutes, before the measurement
can be read from the analyzer.
Continuous analyzers, such as the SERVOPRO
MultiExact 4100 configured with
Paramagnetic or Infrared sensors, always
have a measurement available, although
this may not be valid until the test gas has
reached the device and been analyzed.
The IGS program keeps full records of
operators, operations and events, and
stores copies of certificates in a tamper-
proof format, working in full accordance
with medical validation rules such as
CFR21 part 11.
Trends and graphs are available across
a selectable time frame, with analysis
certificates available in several different
formats. Statistical analysis and
abnormal states during measurements
or calibrations can be added as a trend
overlay, then printed directly.
These functionalities greatly support
preventative maintenance and
troubleshooting.
IGS can manage several applications at
the same time, producing a summary
table with all current readings, warnings
and alarms. It is also backed by
Servomex’s world-class global support.
Multiple users can log in, with varying
permission levels, offering operator,
supervisor and administrator
privilege settings.
Certificate settings can be entered manually
by the user, or the system can be fitted with
a barcode reader which scans the container
label to obtain the required information.
The certificates are configurable, and can
be customized, for example by adding a
company logo and any other information
required. All certificates are stored in a
tamper-proof format and are accessible
via IGS document section.
Find out more: servomex.expert/systems
