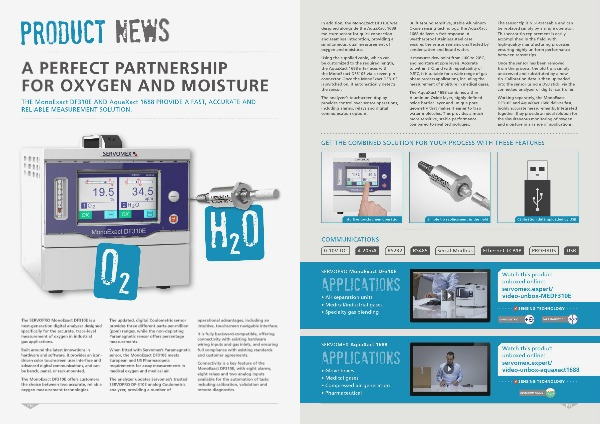

A PERFECT PARTNERSHIP
FOR OXYGEN AND MOISTURE
THE MonoExact DF310E AND AquaXact 1688 PROVIDE A FAST, ACCURATE AND
RELIABLE MEASUREMENT SOLUTION.
In addition, the MonoExact DF310E was
designed alongside the AquaXact 1688
moisture sensor for quick connection
and seamless integration, providing a
simultaneous, dual measurement of
oxygen and moisture. Built around sensitive, stable Aluminum
Oxide sensing technology, the AquaXact
1688 delivers a fast response. A
weatherproof stainless steel case
ensures the sensor remains unaffected by
condensation and liquid water.
Using the supplied cable, which can
be customized to the required length,
the AquaXact 1688 interfaces with
the MonoExact DF310E via a seven-pin
connector. Once the MonoExact DF310E
is switched on, it automatically detects
the sensor. It measures dew point from -100 to 20oC,
and moisture at ppm levels. Accurate
to within 3oC, and with repeatability of
0.5oC, it is suitable for a wide range of gas
phase process applications, including the
measurement of moisture in medical gases.
The analyzer’s touchscreen display
provides control over sensor operations,
including alarms, relays and digital
communication options.
The AquaXact 1688 combines a thin
Aluminum Oxide layer, highly defined
oxide barrier layer and unique pore
geometry that makes it easier to trap
water molecules. This provides a much
more sensitive, stable performance
compared to rival technologies.
The sensor tip is NIST-traceable and can
be replaced simply by a single operator.
This sensor tip replacement is easily
accomplished in the field, with
high-quality manufacturing processes
ensuring highly uniform performance
between sensor tips.
Once the sensor has been removed
from the process, the old tip is simply
unscrewed and substituted by a new
tip. Calibration data is then uploaded
into the sensor using a USB stick, via the
connected analyzer or digital controller.
Working separately, the MonoExact
DF310E and AquaXact 1688 deliver fast,
highly accurate measurements. Integrated
together, they provide an ideal solution for
the simultaneous monitoring of oxygen
and moisture in a range of applications.
GET THE COMBINED SOLUTION FOR YOUR PROCESS WITH THESE FEATURES
O 2
The SERVOPRO MonoExact DF310E is a
next-generation digital analyzer designed
specifically for the accurate, trace-level
measurement of oxygen in industrial
gas applications. The updated, digital Coulometric sensor
provides three different parts-per-million
(ppm) ranges, while the non-depleting
Paramagnetic sensor offers percentage
measurements.
Built around the latest innovations in
hardware and software, it provides an icon-
driven color touchscreen user interface and
advanced digital communications, and can
be bench, panel, or rack-mounted. When fitted with Servomex’s Paramagnetic
sensor, the MonoExact DF310E meets
European and US Pharmacopeia
requirements for assay measurements in
medical oxygen and medical air.
The MonoExact DF310E offers customers
the choice between two accurate, reliable
oxygen measurement technologies. The analyzer updates Servomex’s trusted
SERVOPRO DF-310E analog Coulometric
analyzer, providing a number of
P10
H 2 O
Intuitive touchscreen operation
Simple tip replacement in the field
Calibration data uploaded by USB
COMMUNICATIONS
0-10V DC
4-20mA
RS232
SERVOPRO MonoExact DF310E
APPLICATIONS
• Air separation units
• Medical/industrial gases
• Specialty gas blending
RS485
Serial Modbus
Ethernet TCP/IP
PROFIBUS
USB
Watch this product
unboxed online:
servomex.expert/
video-unbox-MEDF310E
SENSING TECHNOLOGY
operational advantages, including an
intuitive, touchscreen navigable interface.
It is fully backward-compatible, offering
connectivity with existing hardware
wiring inputs and gas inlets, and ensuring
full compliance with existing standards
and customer agreements.
Connectivity is a key feature of the
MonoExact DF310E, with eight alarms,
eight relays and two analog inputs
available for the automation of tasks
including calibration, validation and
remote diagnostics.
SERVOMEX AquaXact 1688
APPLICATIONS
• Glove boxes
• Medical gases
• Compressed air generation
• Pharmaceutical
Watch this product
unboxed online:
servomex.expert/
video-unbox-aquaxact1688
SENSING TECHNOLOGY
ALUMINUM OXIDE
