Protection Engineering Basics and Schemes Protection Engineering | Page 76

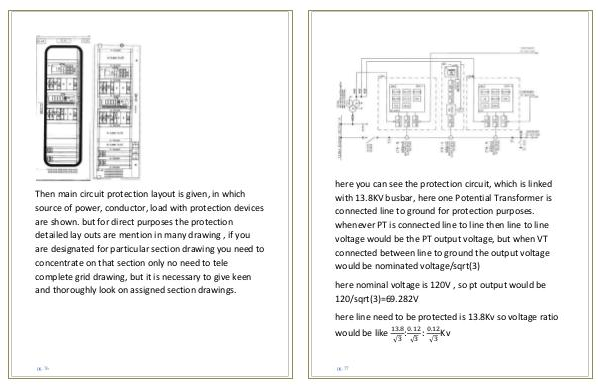

Then main circuit protection layout is given, in which
source of power, conductor, load with protection devices
are shown. but for direct purposes the protection
detailed lay outs are mention in many drawing , if you
are designated for particular section drawing you need to
concentrate on that section only no need to tele
complete grid drawing, but it is necessary to give keen
and thoroughly look on assigned section drawings.
pg. 76
