Protection Engineering Basics and Schemes Protection Engineering | Page 59

both conditions means pre rain/pre moisture and post
rain/post moisture.

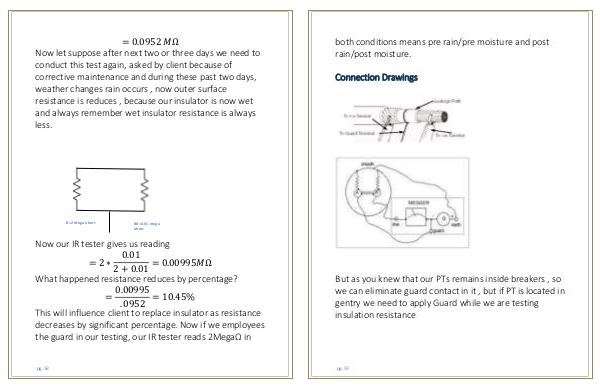

Connection Drawings
But as you knew that our PTs remains inside breakers , so
we can eliminate guard contact in it , but if PT is located in
gentry we need to apply Guard while we are testing
insulation resistance
pg. 59
