Protection Engineering Basics and Schemes Protection Engineering | Page 261

 Start connection of Sverker 760 through
make/break connection will be connected to 108
D12 and 108 B12 or 408D01 and 408B01 (relay
points), reference figure for this connection is
Figure 6X
 Current inject 0-10A point will be connected to
402B01 and 402Z02
 Stop Connection of Sverker 760 will be connected
to power point of relay
 Then through knob start injecting current and
note Dead time

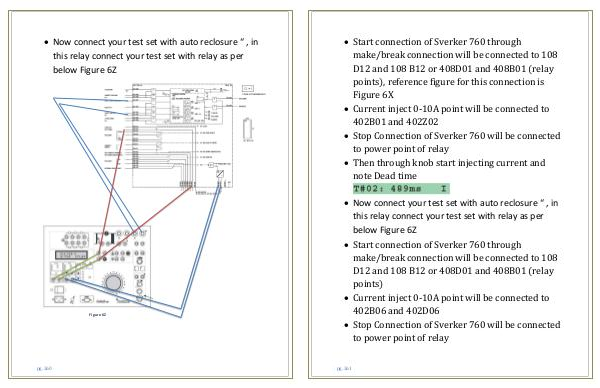

 Now connect your test set with auto reclosure “ , in
this relay connect your test set with relay as per
below Figure 6Z
 Start connection of Sverker 760 through
make/break connection will be connected to 108
D12 and 108 B12 or 408D01 and 408B01 (relay
points)
 Current inject 0-10A point will be connected to
402B06 and 402D06
 Stop Connection of Sverker 760 will be connected
to power point of relay
pg. 261
