Method of Testing:
 Isolate Voltage relay from system, our PT is
11KV/110V, and system is star-star connected.
 Confirm zero voltage status
 Sverker 750/760 is my device, frequency relay I am
testing is SEL 751A.
 Power up SEL 751 A relay through Sverker 750/760
 Open Relay software “AcSelerator”, and set values as
per your requirement, I took 96 % setting, means
whenever our secondary side 48Hz (frequency we
have is 50 Hz), relay will pick up. We need to connect

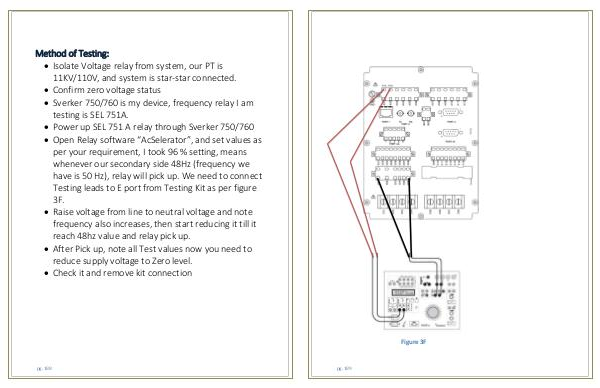

Testing leads to E port from Testing Kit as per figure
3F.
 Raise voltage from line to neutral voltage and note
frequency also increases, then start reducing it till it
reach 48hz value and relay pick up.
 After Pick up, note all Test values now you need to
reduce supply voltage to Zero level.
 Check it and remove kit connection
