Protection Engineering Basics and Schemes Protection Engineering | Page 167

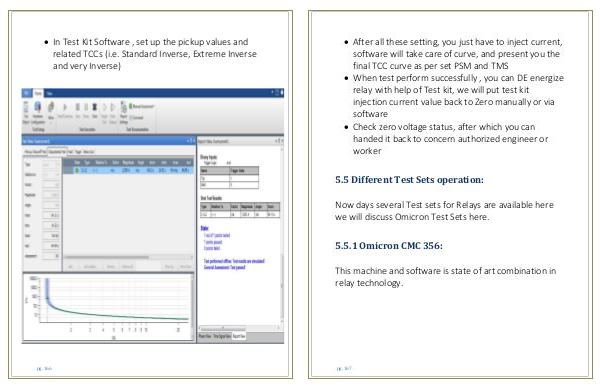

 After all these setting, you just have to inject current,
software will take care of curve, and present you the
final TCC curve as per set PSM and TMS
 When test perform successfully , you can DE energize
relay with help of Test kit, we will put test kit
injection current value back to Zero manually or via
software
 Check zero voltage status, after which you can
handed it back to concern authorized engineer or
worker
5.5 Different Test Sets operation:
Now days several Test sets for Relays are available here
we will discuss Omicron Test Sets here.
5.5.1 Omicron CMC 356:
This machine and software is state of art combination in
relay technology.
