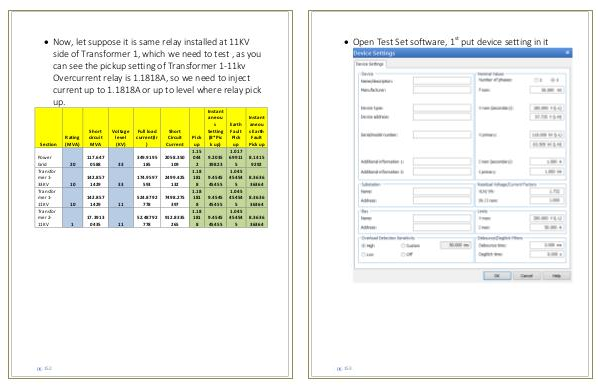

 Now, let suppose it is same relay installed at 11KV
side of Transformer 1, which we need to test , as you
can see the pickup setting of Transformer 1-11kv
Overcurrent relay is 1.1818A, so we need to inject
current up to 1.1818A or up to level where relay pick
up.
