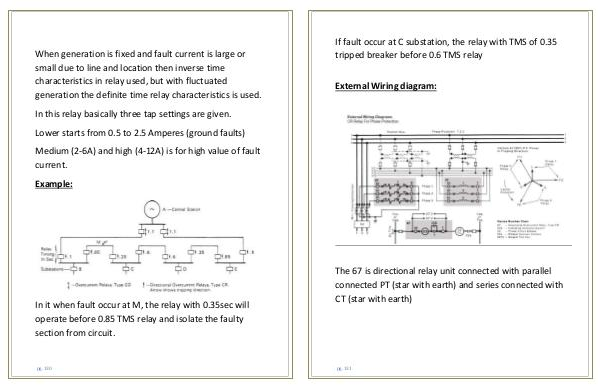

Protection Engineering Basics and Schemes Protection Engineering | Page 131

If fault occur at C substation, the relay with TMS of 0.35
tripped breaker before 0.6 TMS relay
External Wiring diagram:
The 67 is directional relay unit connected with parallel
connected PT (star with earth) and series connected with
CT (star with earth)
pg. 131
