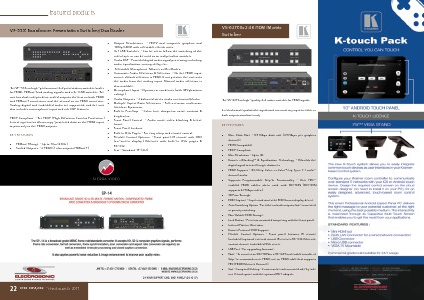

PROMAG THIRD QUARTER 2014 - VOLUME 22 NUMBER 3 | Page 25
VS-62H: 6x2 4K HDMI Matrix
Switcher
The VS−62H is a high−quality, 6x2 matrix switcher for HDMI signals.
It reclocks and equalizes the signals and can route any input to either or
both outputs simultaneously.
KEY FEATURES
•
Max. Data Rate - 8.91Gbps data rate (2.97Gbps per graphics
channel).
•
HDTV Compatible.
•
HDCP Compliant.
•
Max. Resolution - Up to 4K.
•
Kramer reKlocking™ & Equalization Technology - Rebuilds the
digital signal to travel longer distances.
•
HDMI Support - 3D, Deep Color, x.v.Color™, Lip Sync, 7.1 multi−
channel audio.
•
Supports Programmable Step-In Functionality - Over HEC−
enabled HDMI cables, when used with SID−X3N (SID−X3N
supports 6.75Gbps video).
•
3D Pass Through.
•
EDID Capture - Copies and stores the EDID from a display device.
•
Auto Switching Option - For either or both outputs, last−connected
or priority
