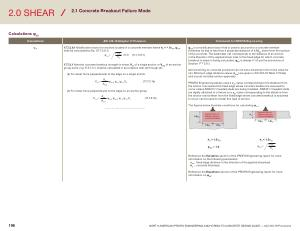

2.0 SHEAR
2.1 Concrete Breakout Failure Mode
Calculations ψ hV
Calculations ACI 318-19 Chapter 17 Provision Comments for PROFIS Engineering
ψ hV
|
17.7.2.6.1 Modification factor for anchors located in a concrete member where h a
< 1.5c a1 , ψ h , V
,
|
shall be calculated by Eq . ( 17.7.2.6.1 )
ψ h , V
=
|
1.5c a1
≥1.0 h a
|
( 17.7.2.6.1 ) |
17.7.2.1 Nominal concrete breakout strength in shear , V cb of a single anchor or V cbg of an anchor group satisfying 17.5.1.3.1 , shall be calculated in accordance with ( a ) through ( d ): ( a ) For shear force perpendicular to the edge on a single anchor
V cb
=
A Vc ψed , V ψ c , V ψ h , V
V b
( 17.7.2.1a )
A Vc0
( b ) For shear force perpendicular to the edge on an anchor group
V cbg
= A Vc ψ ec , V ψ ed , V ψ c , V ψ h , V
V b
( 17.7.2.1b )
A Vc0
………………………………………….. ψ h , V is a modification factor that is used to account for a concrete member thickness ha that is less than a projected distance of 1.5c a1 down from the surface of the concrete . The parameter ca1 corresponds to the distance of an anchor , in the direction of the applied shear load , to the fixed edge for which concrete breakout in shear is being calculated . ψ h , V is always ≥ 1.0 per the provisions of
Section 17.7.2.6.1 .
ACI anchoring-to-concrete provisions do not set a maximum limit on the value for ca1 . Minimum edge distance values ( c min
) are given in ACI 318-19 Table 17.9.2 ( a ) and in post-installed anchor approvals .
PROFIS Engineering always uses a c a1
-value corresponding to the distance from the anchor row nearest the fixed edge where concrete breakout is assumed to occur unless AWS D1.1 headed studs are being modeled . AWS D1.1 headed studs are rigidly attached to a fixture so a c a1
-value corresponding to the distance from the anchor row farthest from the fixed edge where concrete breakout is assumed to occur can be used to model this type of anchor .
The figures below illustrate conditions for calculating ψ h , V . h a
> 1.5c a1 h a
< 1.5c a1 ψ h , V
= 1.0 ψ h , V =
1.5c a1
h a
Reference the Variables section of the PROFIS Engineering report for more information on the following parameters :
c a1
: fixed edge distance in the direction of the applied shearload
h a
: concrete thickness
Reference the Equations section of the PROFIS Engineering report for more information on ψ h , V
.
196 NORTH AMERICAN PROFIS ENGINEERING ANCHORING TO CONCRETE DESIGN GUIDE — ACI 318-19 Provisions
