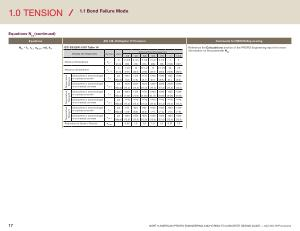

1.0 TENSION
1.1 Bond Failure Mode
Equations N ba
( continued )
Equations ACI 318-19 Chapter 17 Provision Comments for PROFIS Engineering
N ba
= λ a т k , c α N , seis πd a h ef
ICC-ES ESR-3187 Table 14
DESIGN INFORMATION Symbol Units
Nominal Rod Diameter ( in ). 3 / 8 1 / 2 5 / 8 3 / 4 7 / 8 1 1-1 / 4
Minimum Embedment h ef , min in 2-3 / 8 2-3 / 4 3-1 / 8 3-1 / 2 3-1 / 2 4 5 ( mm ) ( 60 ) ( 70 ) ( 79 ) ( 89 ) ( 89 ) ( 102 ) ( 127 )
Maximum Embedment h ef , max in 7-1 / 2 10 12-1 / 2 15 17-1 / 5 20 25 ( mm ) ( 191 ) ( 254 ) ( 318 ) ( 381 ) ( 445 ) ( 508 ) ( 635 )
Temperature Range A
Temperature Range B
Temperature Range C
Characteristic bond strength psi 1045 1135 1170 1260 1290 1325 1380 in cracked concrete т k , cr ( Mpa ) ( 7.2 ) ( 7.8 ) ( 8.1 ) ( 8.7 ) ( 8.9 ) ( 9.1 ) ( 9.5 )
Characteristic bond strength psi 2220 2220 2220 2220 2220 2220 2220 in uncracked concrete т k , uncr ( Mpa ) ( 15.3 ) ( 15.3 ) ( 15.3 ) ( 15.3 ) ( 15.3 ) ( 15.3 ) ( 15.3 )
Characteristic bond strength psi 1045 1135 1170 1260 1290 1325 1380 in cracked concrete т k , cr ( Mpa ) ( 7.20 ) ( 7.80 ) ( 8.00 ) ( 8.67 ) ( 9.00 ) ( 9.00 ) ( 9.50 )
Characteristic bond strength psi 2220 2220 2220 2220 2220 2220 2220 in uncracked concrete т k , uncr ( Mpa ) ( 15.3 ) ( 15.3 ) ( 15.3 ) ( 15.3 ) ( 15.3 ) ( 15.3 ) ( 15.3 )
Characteristic bond strength psi 855 930 960 1035 1055 1085 1130 in cracked concrete т k , cr ( Mpa ) ( 5.9 ) ( 6.4 ) ( 6.6 ) ( 7.1 ) ( 7.3 ) ( 7.5 ) ( 7.8 )
Characteristic bond strength psi 1820 1820 1820 1820 1820 1820 1820 in uncracked concrete т k , uncr ( Mpa ) ( 12.6 ) ( 12.6 ) ( 12.6 ) ( 12.6 ) ( 12.6 ) ( 12.6 ) ( 12.6 )
Reduction for Seismic Tension α N , seis - 0.88 1.0 1.0 1.0 1.0 0.97 1.0
Reference the Calculations section of the PROFIS Engineering report for more information on the parameter N ba
.
17 NORTH AMERICAN PROFIS ENGINEERING ANCHORING TO CONCRETE DESIGN GUIDE — ACI 318-19 Provisions
