N
The Ageless
Playhouse
A
B
PRODUCED BY AN AUTODESK STUDENT VERSION
A
B
Sarah Perkins
Notes:
Lift
PRODUCED BY AN AUTODESK STUDENT VERSION
Accessible design element
Area to be detailed
Wheelchair turning point
Unisex toilet
Wheelchair accesible toilet
Disabled refuge point
Client: The Kings Theatre Company
Project Title: The Ageless Playhouse

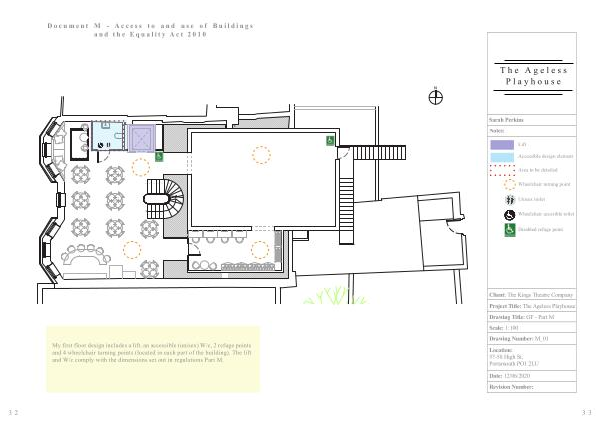

Drawing Title: GF - Part M
Scale: 1:100
Drawing Number: M_01
Location:
57-58 High St,
Portsmouth PO1 2LU
Date: 12/06/2020
Revision Number:
PRODUCED B
