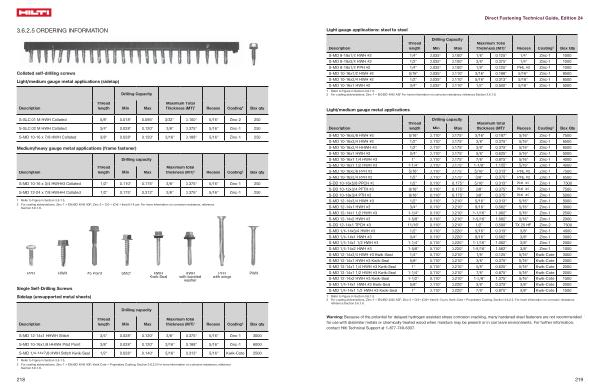

3.6.2.5 ORDERING INFORMATION
Collated self-drilling screws Light / medium gauge metal applications ( sidelap )
Drilling Capacity
Description |
Thread length |
|
|
|
Min |
Max |
Maximum Total |
|
|
|
Thickness ( MT ) 1 |
Recess |
Coating 2 |
Box qty |
|
S-SLC 01 M HWH Collated |
5 / 8 " |
0.018 " |
0.095 " |
3 / 32 " |
0.100 " |
5 / 16 " |
Zinc-2 |
250 |
S-SLC 02 M HWH Collated |
3 / 4 " |
0.028 " |
0.120 " |
3 / 8 " |
0.375 " |
5 / 16 " |
Zinc-1 |
250 |
S-MD 10-16 x 7 / 8 HWH Collated |
3 / 8 " |
0.028 " |
0.120 " |
3 / 16 " |
0.188 " |
5 / 16 " |
Zinc-1 |
250 |
Medium / heavy gauge metal applications ( frame fastener ) |
Drilling capacity
Description |
|
|
|
|
Thread length |
Min |
Max |
Maximum total |
|
|
|
thickness ( MT ) 1 |
Recess |
Coating 2 |
Box qty |
|
S-MD 10-16 x 3 / 4 HWH # 3 Collated 1 / 2 " 0.110 " 0.175 " 3 / 8 " 0.375 " 5 / 16 " Zinc-1 250 S-MD 12-24 x 7 / 8 HWH # 4 Collated 1 / 2 " 0.175 " 0.312 " 3 / 8 " 0.375 " 5 / 16 " Zinc-1 250
1 Refer to Figure in Section 3.6.1.5 .
2 For coating abbreviations , Zinc-1 = EN / ISO 4042 A3F ; Zinc-2 = Cr3 + ( Cr6 + free ) 8-14 μm . For more information on corrosion resistance , reference Section 3.6.1.6 .
PPH HWH # 5 Point Stitch HWH Kwik-Seal |
HWH with bonded washer |
PFH with wings |
PWH |
Single Self-Drilling Screws |
|
|
|
Sidelap ( unsupported metal sheets ) |
|
|
|
Drilling capacity |
|
|
|
Description |
Thread length |
Min |
Max |
|
Maximum total |
|
|
|
thickness ( MT ) 1 |
Recess |
Coating 2 |
Box qty |
|
S-MD 12-14x1 HHWH Stitch 3 / 4 " 0.028 " 0.120 " 3 / 8 " 0.375 " 5 / 16 " Zinc-1 3000 S-MD 10-16x7 / 8 HHWH Pilot Point 3 / 8 " 0.028 " 0.120 " 3 / 16 " 0.188 " 5 / 16 " Zinc-1 6000 S-MD 1 / 4-14x7 / 8 HWH Stitch Kwik-Seal 1 / 2 " 0.028 " 0.140 " 5 / 16 " 0.313 " 5 / 16 " Kwik-Cote 2500
1 Refer to Figure in Section 3.6.1.5 .
2 For coating abbreviations , Zinc-1 = EN / ISO 4042 A3F ; Kwik Cote = Proprietary Coating , Section 3.6.2.2 For more information on corrosion resistance , reference Section 3.6.1.6 .
