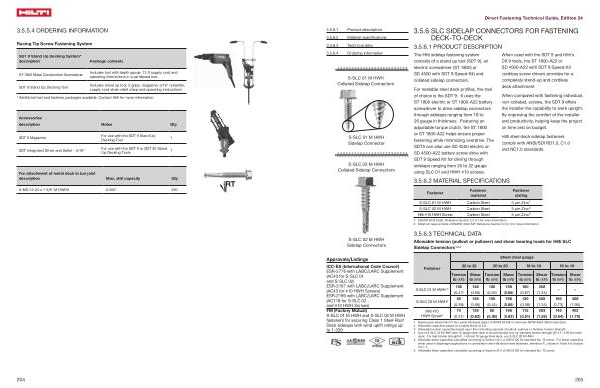

3.5.6 SLC SIDELAP CONNECTORS FOR FASTENING DECK-TO-DECK
3.5.6.1 PRODUCT DESCRIPTION
The Hilti sidelap fastening system consists of a stand up tool ( SDT 9 ), an electric screwdriver ( ST 1800 ) or SD 4500 with SDT 9 Speed Kit ) and collated sidelap connectors .
For nestable steel deck profiles , the tool of choice is the SDT 9 . It uses the ST 1800 electric or ST 1800-A22 battery screwdriver to drive sidelap connectors through sidelaps ranging from 16 to 26 gauge in thickness . Featuring an adjustable torque clutch , the ST 1800 or ST 1800-A22 helps ensure proper fastening while minimizing overdrive . The SDT5 can also use SD 4500 electric or SD 4500-A22 battery screw drive with SDT 9 Speed Kit for driving through sidelaps ranging from 20 to 22 gauge using SLC 01 and HWH # 10 screws .
3.5.6.2 MATERIAL SPECIFICATIONS
When used with the SDT 9 and Hilti ' s DX 9 tools , the ST 1800-A22 or SD 4500-A22 with SDT 9 Speed Kit cordless screw drivers provides for a completely stand-up and cordless deck attachment .
When compared with fastening individual , non-collated , screws , the SDT 9 offers the installer the capability to work upright . By improving the comfort of the installer and productivity , helping keep the project on time and on budget .
Hilti steel deck sidelap fasteners comply with ANSI / SDI RD1.0 , C1.0 and NC1.0 standards .
Fastener
Fastener material
Fastener plating
S-SLC 01 M HWH Carbon Steel 5 µ m Zinc 1 S-SLC 02 M HWH Carbon Steel 5 µ m Zinc 2 Hilti # 10 HWH Screw Carbon Steel 5 µ m Zinc 2
1 EN / ISO 4042 A / 3 / E . Reference Section 2.3.3.1 for more information . 2 Minimum requirements of EN / ISO 4042 A3F . Reference Section 2.3.3.1 for more information .
S-SLC 02 M HWH Sidelap Connectors
Approvals / Listings
ICC-ES ( International Code Council ) ESR-2776 with LABC / LARC Supplement ( AC43 for S-SLC 01 and S-SLC 02 ) ESR-2197 with LABC / LARC Supplement ( AC43 for # 10 HWH Screws ) ESR-2196 with LABC / LARC Supplement ( AC118 for S-SLC 02 and # 10 HWH Screws ) FM ( Factory Mutual ) S-SLC 01 M HWH and S-SLC 02 M HWH fasteners for securing Class 1 Steel Roof Deck sidelaps with wind uplift ratings up to 1-330 .
3.5.6.3 TECHNICAL DATA
Allowable tension ( pullout or pullover ) and shear bearing loads for Hilti SLC Sidelap Connectors 1 , 2 , 3
Fastener
Tension lb ( kN )
Sheet steel gauge 22 to 22 20 to 20 18 to 18 16 to 16
Shear lb ( kN )
Tension lb ( kN )
Shear lb ( kN )
Tension lb ( kN )
Shear lb ( kN )
105 148 120 198 150 302 S-SLC 01 M HWH 4 , 5 ( 0.47 ) ( 0.66 ) ( 0.53 ) ( 0.88 ) ( 0.67 ) ( 1.34 )
Tension lb ( kN )
Shear lb ( kN )
– –
S-SLC 02 M HWH 5 85 148 100 198 130 302 165 428 ( 0.38 ) ( 0.66 ) ( 0.44 ) ( 0.88 ) ( 0.58 ) ( 1.34 ) ( 0.73 ) ( 1.90 )
Hilti # 10 |
70 |
139 |
85 |
186 |
115 |
283 |
145 |
402 |
HWH Screw 6 |
( 0.31 ) |
( 0.62 ) |
( 0.38 ) |
( 0.83 ) |
( 0.51 ) |
( 1.26 ) |
( 0.64 ) |
( 1.79 ) |
1 Based upon attachment of two-same thickness layers of ASTM A1008 or minimum ASTM A653 SQ33 steel deck . 2 Allowable capacities based on a safety factor of 3.0 . 3 Allowable tension capacities based upon the controlling capacity of pullout , pullover or fastener tension strength . 4 Use of S-SLC 01 M HWH with 18 gauge steel deck is recommended only for standard tensile strength ( 45 ≤ F u
≤ 65 ksi ) steel deck . For high tensile strength ( F u
> 65 ksi ) 18 gauge steel deck , use S-SLC 02 M HWH . 5 Allowable shear capacities calculated according to Section J4.3 of AISI S100 for standard No . 12 screw . For shear capacities when used in diaphragm applications in combination with Hilti deck frame fasteners , reference P ns values in Table 8 in Section
3.5.1.7 . 6 Allowable shear capacities calculated according to Section J4.3 of AISI S100 for standard No . 10 screw .
