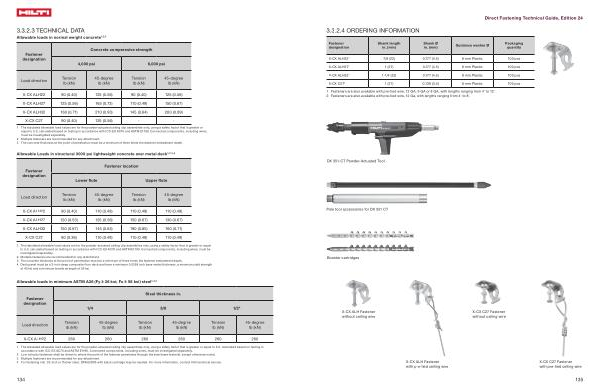

Direct Fastening Technical Guide , Edition 24
3.3.2.4 ORDERING INFORMATION
Fastener designation |
Shank length in . ( mm ) |
Shank Ø in . ( mm ) |
Guidance washer Ø |
Packaging quantity |
X-CX ALH22 1 7 / 8 ( 22 ) 0.177 ( 4.5 ) 8 mm Plastic 100 pcs
X-CX ALH27 1 1 ( 27 ) 0.177 ( 4.5 ) 8 mm Plastic 100 pcs X-CX ALH32 1 1-1 / 4 ( 32 ) 0.177 ( 4.5 ) 8 mm Plastic 100 pcs X-CX C27 2 1 ( 27 ) 0.138 ( 3.5 ) 8 mm Plastic 100 pcs
1 Fasteners are also available with pre-tied wire , 12 GA , 9 GA or 8 GA , with lengths ranging from 4 ' to 12 '. 2 Fasteners are also available with pre-tied wire , 12 Ga , with lengths ranging from 4 ' to 8 '.
DX 351-CT Powder-Actuated Tool
Pole tool accessories for DX 351 CT
Booster cartridges
X-CX ALH Fastener without ceiling wire
X-CX C27 Fastener without ceiling wire
X-CX ALH Fastener with pre-tied ceiling wire
X-CX C27 Fastener with pre-tied ceiling wire
135
