Direct Fastening Technical Guide , Edition 24

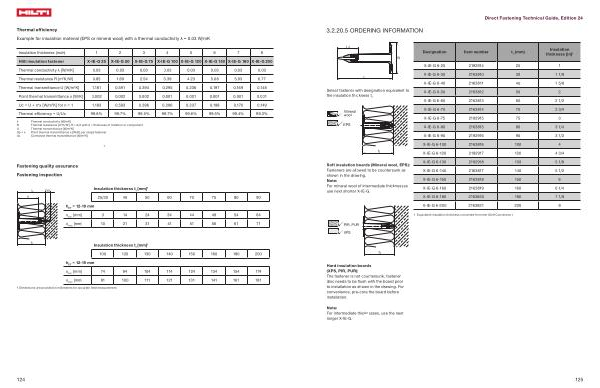

3.2.20.5 ORDERING INFORMATION
L S
Ø
Designation Item number t 1 ( mm )
Insulation thickness [ in ] 1
X-IE-G 6-25 2192914 25 1
L
Select fastener with designation equivalent to the insulation thickness t l
.
Mineral wool
EPS
X-IE-G 6-30 |
2163810 |
30 |
1 1 / 8 |
X-IE-G 6-40 |
2163811 |
40 |
1 5 / 8 |
X-IE-G 6-50 |
2163812 |
50 |
2 |
X-IE-G 6-60 |
2163813 |
60 |
2 1 / 2 |
X-IE-G 6-70 |
2163814 |
70 |
2 3 / 4 |
X-IE-G 6-75 |
2192915 |
75 |
3 |
X-IE-G 6-80 |
2163815 |
80 |
3 1 / 4 |
X-IE-G 6-90 2192916 90 3 1 / 2 X-IE-G 6-100 2163816 100 4
Soft insulation boards ( Mineral wool , EPS ): Fasteners are allowed to be countersunk as shown in the drawing . Note : For mineral wool of intermediate thicknesses use next shorter X-IE-G . t I
X-IE-G 6-120 |
2192917 |
120 |
4 3 / 4 |
X-IE-G 6-130 |
2192918 |
130 |
5 1 / 8 |
X-IE-G 6-140 |
2163817 |
140 |
5 1 / 2 |
X-IE-G 6-150 |
2163818 |
150 |
6 |
X-IE-G 6-160 |
2163819 |
160 |
6 1 / 4 |
X-IE-G 6-180 |
2163820 |
180 |
7 1 / 8 |
X-IE-G 6-200 2163821 200 8
1 Equivalent insulation thickness converted from mm ( Soft Conversion .)
PIR , PUR XPS t I
Hard insulation boards ( XPS , PIR , PUR ): The fastener is not countersunk , fastener disc needs to be flush with the board prior to installation as shown in the drawing . For convenience , pre-core the board before installation .
Note : For intermediate thicknesses , use the next longer X-IE-G .
125
