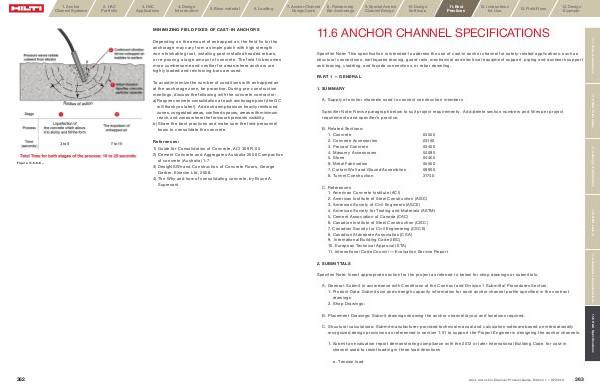

MINIMIZING FIELD FIXES OF CAST-IN ANCHORS
References:
10. Design
Software
11. Best
Practices
12. Instructions
for Use
13. Field Fixes
14. Design
Example
11.6 ANCHOR CHANNEL SPECIFICATIONS
Specifier Note: This specification is intended to address the use of cast-in anchor channel for safety-related applications, such as
structural connections, earthquake bracing, guard rails, mechanical and electrical equipment support, piping and ductwork support
and bracing, cladding, and façade connections, or rebar doweling.
