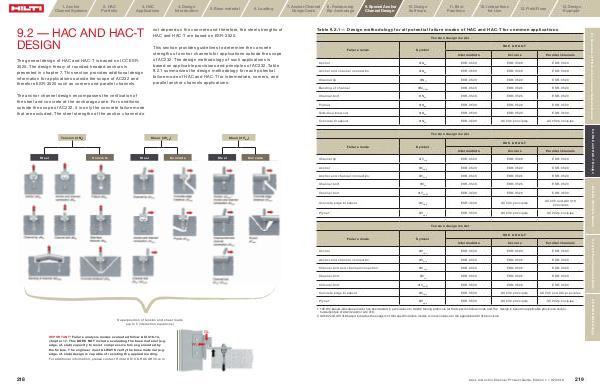

The general design of HAC and HAC-T is based on ICC ESR-
3520. The design theory of rounded headed anchors is
presented in chapter 7. This section provides additional design
information for applications outside the scope of AC232 and
therefore ESR-3520 such as corners and parallel channels.
5. Base material
6. Loading
not depend on the concrete and therefore, the steel strengths of
HAC and HAC-T are based on ESR-3520.
This section provides guidelines to determine the concrete
strengths of anchor channels for applications outside the scope
of AC232. The design methodology of such applications is
based on applicable provisions and principles of AC232. Table
9.2.1 summarizes the design methodology for each potential
failure mode of HAC and HAC-T for intermediate, corners, and
parallel anchor channels applications.
The anchor channel design encompasses the verification of
the steel and concrete at the anchorage zone. For conditions
outside the scope of AC232, it is only the concrete failure mode
that are excluded. The steel strengths of the anchor channel do
Shear (ΦV n,y )
8. Reinforcing
Bar Anchorage
9. Special Anchor
Channel Design
Concrete
Steel
Concrete
Concrete
12. Instructions
for Use
14. Design
Example
13. Field Fixes
Tension design model
Failure mode
Symbol
HAC & HAC-T
Intermediate Corners Parallel channels
Anchor ΦN sa ESR-3520 ESR-3520 ESR-3520
Anchor and channel connection ΦN sc ESR-3520 ESR-3520 ESR-3520
Channel lip ΦN sl ESR-3520 ESR-3520 ESR-3520
ΦM s,flex ESR-3520 ESR-3520 ESR-3520
Channel bolt ΦN ss ESR-3520 ESR-3520 ESR-3520
Pullout ΦN pn ESR-3520 ESR-3520 ESR-3520
Side-face blowout ΦN sb ESR-3520 ESR-3520 ESR-3520
Concrete breakout ΦN cb ESR-3520 AC232 principles AC232 principles
Bending of channel
Tension design model
Shear (ΦV n,x )
Steel
11. Best
Practices
Table 9.2.1 — D esign methodology for all potential failure modes of HAC and HAC-T for common applications
Failure mode
Steel
10. Design
Software
Symbol
HAC & HAC-T
Intermediate Corners Parallel channels
ΦV sl,y ESR-3520 ESR-3520 ESR-3520
Anchor ΦV sa,y ESR-3520 ESR-3520 ESR-3520
Anchor and channel connection ΦV sc,y ESR-3520 ESR-3520 ESR-3520
Channel bolt ΦV ss ESR-3520 ESR-3520 ESR-3520
Channel bolt ΦV ss,M ESR-3520 ESR-3520 ESR-3520
Concrete edge breakout ΦV cb,y ESR-3520 AC232 principles AC232 and ACI 318
principles
Pryout ΦV cp,y ESR-3520 AC232 principles AC232 principles
Tension design model
HAC & HAC-T
Intermediate Corners Parallel channels
Anchor ΦV sa,x ESR-3520 ESR-3520 ESR-3520
Anchor and channel connection ΦV sc,x ESR-3520 ESR-3520 ESR-3520
Channel bolt and channel connection ΦV sl,x ESR-3520 ESR-3520 ESR-3520
Channel bolt ΦV ss ESR-3520 ESR-3520 ESR-3520
Channel bolt ΦV ss,M ESR-3520 ESR-3520 ESR-3520
Concrete edge breakout ΦV cb,x ESR-3520 AC232 principles AC232 and ACI principles
Pryout ΦV cp,x ESR-3520 AC232 principles AC232 principles
Superposition of tension and shear loads
(up to 5 interaction equations)
Symbol
1 1
AC232 based indicates product has been tested in accordance to AC232 testing protocols for that specific failure mode and the design is based on applicable provisions and/or
fundamentals of AC232 and/or ACI 318.
2 AC232 and ACI 318 based indicates the analysis of that specific failure modes is in accordance to the applicable ACI 318 provision.
IMPORTANT! Failure analysis modes evaluated follow ACI 318-14,
chapter 17. This DOES NOT include evaluating the base material (e.g.
edge-of-slab) capacity to resist compressive forces generated by
the fixture. The engineer must ALWAYS verify the base material (e.g.
edge-of-slab) design is capable of resisting the applied loading.
For additional information, please contact Hilti at [email protected]
218
