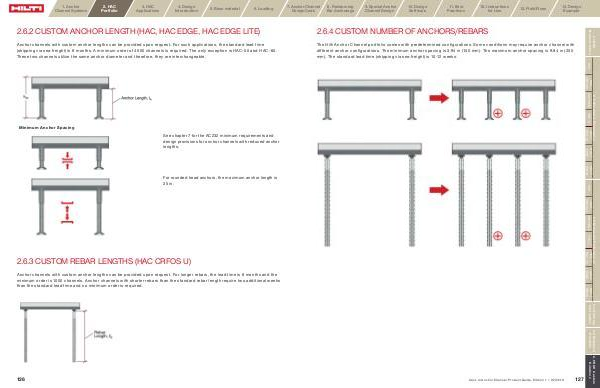

2.6.4 CUSTOM NUMBER OF ANCHORS/REBARS
Anchor channels with custom anchor lengths can be provided upon request. For such applications, the standard lead time
(shipping via sea-freight) is 6 months. A minimum order of 4000 channels is required. The only exception is HAC-50 and HAC-60.
These two channels utilize the same anchor diameter and therefore, they are interchangeable. The Hilti Anchor Channel portfolio comes with predetermined configurations. Some conditions may require anchor channel with
different anchor configurations. The minimum anchor spacing is 3.94 in (100 mm). The maximum anchor spacing is 9.84 in (250
mm). The standard lead time (shipping via sea-freight) is 10-12 weeks.
2.6.2 CUSTOM ANCHOR LENGTH (HAC, HAC EDGE, HAC EDGE LITE)
Minimum Anchor Spacing
See chapter 7 for the AC232 minimum requirements and
design provisions for anchor channels with reduced anchor
lengths.
For rounded head anchors, the maximum anchor length is
25 in.
2.6.3 CUSTOM REBAR LENGTHS (HAC CRFOS U)
Anchor channels with custom anchor lengths can be provided upon request. For longer rebars, the lead time is 6 months and the
minimum order is 1000 channels. Anchor channels with shorter rebars than the standard rebar length require two additional weeks
than the standard lead time and no minimum order is required.
