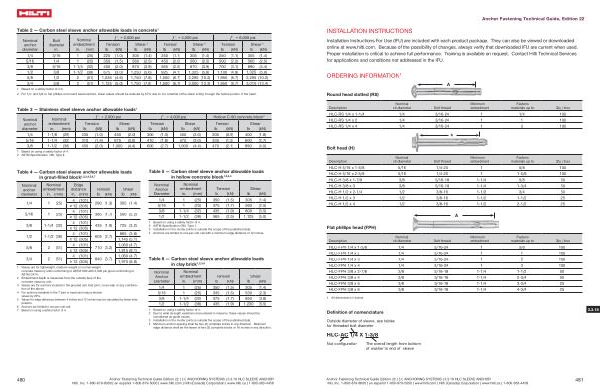

INSTALLATION INSTRUCTIONS
Installation Instructions For Use ( IFU ) are included with each product package . They can also be viewed or downloaded online at www . hilti . com . Because of the possibility of changes , always verify that downloaded IFU are current when used . Proper installation is critical to achieve full performance . Training is available on request . Contact Hilti Technical Services for applications and conditions not addressed in the IFU .
ORDERING INFORMATION 1
Round head slotted ( RS )
A
Description
Nominal bit diameter
Bolt thread
Minimum embedment
Fastens materials up to
Qty / box
HLC-RS 1 / 4 x 1-1 / 4
1 / 4
3 / 16-24
1
1 / 4
100
HLC-RS 1 / 4 x 2
1 / 4
3 / 16-24
1
1
100
HLC-RS 1 / 4 x 4
1 / 4
3 / 16-24
1
3
100
A
Bolt head ( H )
Description
Nominal bit diameter
Bolt thread
Minimum embedment
Fastens materials up to
Qty / box
HLC-H 5 / 16 x 1-5 / 8
5 / 16
1 / 4-20
1
5 / 8
100
HLC-H 5 / 16 x 2-5 / 8
5 / 16
1 / 4-20
1
1-5 / 8
100
HLC-H 3 / 8 x 1-7 / 8
3 / 8
5 / 16-18
1-1 / 4
5 / 8
50
HLC-H 3 / 8 x 3
3 / 8
5 / 16-18
1-1 / 4
1-3 / 4
50
HLC-H 1 / 2 x 2-1 / 4
1 / 2
3 / 8-16
1-1 / 2
3 / 4
50
HLC-H 1 / 2 x 3
1 / 2
3 / 8-16
1-1 / 2
1-1 / 2
25
HLC-H 1 / 2 x 4
1 / 2
3 / 8-16
1-1 / 2
2-1 / 2
25
A
Flat phillips head ( FPH )
Description
Nominal bit diameter
Bolt thread
Minimum embedment
Fastens materials up to
Qty / box
HLC-FPH 1 / 4 x 1-3 / 8
1 / 4
3 / 16-24
1
3 / 8
100
HLC-FPH 1 / 4 x 2
1 / 4
3 / 16-24
1
1
100
HLC-FPH 1 / 4 x 3
1 / 4
3 / 16-24
1
2
100
HLC-FPH 1 / 4 x 4
1 / 4
3 / 16-24
1
3
100
HLC-FPH 3 / 8 x 2-7 / 8
3 / 8
5 / 16-18
1-1 / 4
1-1 / 2
50
HLC-FPH 3 / 8 x 4
3 / 8
5 / 16-18
1-1 / 4
2-3 / 4
50
HLC-FPH 3 / 8 x 5
3 / 8
5 / 16-18
1-1 / 4
3-3 / 4
25
HLC-FPH 3 / 8 x 6
3 / 8
5 / 16-18
1-1 / 4
4-3 / 4
25
1 All dimensions in inches
Definition of nomenclature
3.3.18
Outside diameter of sleeve , see tables for threaded bolt diameter
HLC-AC 1 / 4 X 1-3 / 8
Nut configuration
The overall length from bottom of washer to end of sleeve
