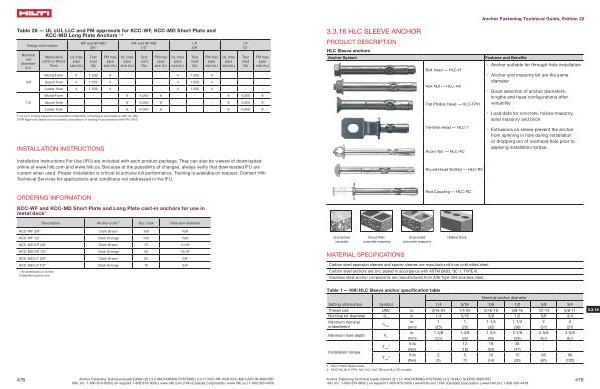

3.3.18 HLC SLEEVE ANCHOR
PRODUCT DESCRIPTION
HLC Sleeve anchors Anchor System
Bolt head — HLC-H
Hex Nut — HLC-HX
Flat Phillips Head — HLC-FPH
Tie-Wire Head — HLC-T
Acorn Nut — HLC-AC
Anchor Fastening Technical Guide , Edition 22
Features and Benefits
• Anchor suitable for through-hole installation
• Anchor and masonry bit are the same diameter
• Good selection of anchor diameters , lengths and head configurations offer versatility
• Load data for concrete , hollow masonry , solid masonry and brick
• Extrusions on sleeve prevent the anchor from spinning in hole during installation or dropping out of overhead hole prior to applying installation torque .
Round Head Slotted — HLC-RS
Rod Coupling — HLC-RC
Uncracked concrete
Grout-filled concrete masonry
Ungrouted concrete masonry
Hollow brick
MATERIAL SPECIFICATIONS
Carbon steel epansion sleeves and spacer sleeves are manufactured from cold rolled steel . Carbon steel anchors are zinc plated in accordance with ASTM B633 , SC 1 , TYPE III . Stainless steel anchor components are manufactured from AISI Type 304 stainless steel .
Table 1 — Hilti HLC Sleeve anchor specification table
Nominal anchor diameter
Setting information
Symbol
1 / 4
5 / 16
3 / 8
1 / 2
5 / 8
3 / 4
Thread size
UNC
in .
3 / 16-24
1 / 4-20
5 / 16-18
3 / 8-16
1 / 2-13
5 / 8-11
Nominal bit diameter
d bit
in .
1 / 4
5 / 16
3 / 8
1 / 2
5 / 8
3 / 4
Minimum nominal embedment
h nom
in .
( mm )
1
( 25 )
1
( 25 )
1-1 / 4
( 32 )
1-1 / 2
( 38 )
2
( 51 )
2
( 51 )
Minimum hole depth
h o
in .
( mm )
1-3 / 8
( 35 )
1-3 / 8
( 35 )
1-3 / 4
( 45 )
2-1 / 8
( 54 )
2-5 / 8
( 67 )
2-5 / 8
( 67 )
Installation torque
1
T inst
2
T inst
ft-lb
( Nm ) ft-lb
( Nm )
-
-
2
( 3 )
12
( 16 )
5
( 7 )
18
( 24 )
10
( 14 )
35
( 47 )
15
( 20 )
-
-
60
( 81 )
-
-
90
( 122 )
1 HLC-H Bolt Head model .
2 HLC-HX , HLC-FPH , HLC-AC , HLC-RS and HLC-RC models .
