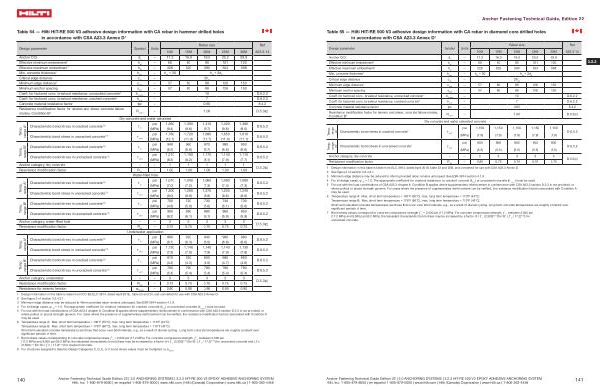

Table 54 — Hilti HIT-RE 500 V3 adhesive design information with CA rebar in hammer drilled holes in accordance with CSA A23.3 Annex D ¹

Design parameter Symbol Units

Rebar size

Ref 10M 15M 20M 25M 30M A23.3-14

Anchor O . D . d _a – 11.3 16.0 19.5 25.2 29.9

Effective minimum embedment ² h _ef – 60 80 90 101 120

Effective maximum embedment ² h _ef – 226 320 390 504 598

Min . concrete thickness ² h _min – h _ef

+ 30 h _ef + 2d ₀

Critical edge distance	c _ac	–			2h _ef
Minimum edge distance ³	c _min	–	57	80	98	126	150

Minimum anchor spacing s _min – 57 80 98 126 150

Coeff . for factored conc . breakout resistance , uncracked concrete ⁴ k _c _, _uncr – 10 D . 6.2.2

Coeff . for factored conc . breakout resistance , cracked concrete ⁴ k _c _, _cr

– 7 D . 6.2.2 Concrete material resistance factor фc – 0.65 8.4.2 Resistance modification factor for tension and shear , concrete failure modes , Condition B ⁵ R _conc

– 1.00 D . 5.3 ( c )

Temp . range A ⁶

Temp . range B ⁶

Dry concrete and water saturated psi 1,360 1,390 1,410 1,420 1,380

Characteristic bond stress in cracked concrete ⁷ ^, ⁸ τ _cr

( MPa ) ( 9.4 ) ( 9.6 ) ( 9.7 ) ( 9.8 ) ( 9.5 ) psi 1,760 1,720 1,690 1,650 1,610

Characteristic bond stress in uncracked concrete ⁷ ^, ⁸ τ _uncr

( MPa ) ( 12.1 ) ( 11.9 ) ( 11.7 ) ( 11.4 ) ( 11.1 ) psi 940 960 970 980 950

Characteristic bond stress in cracked concrete ⁷ ^, ⁸ τ _cr

( MPa ) ( 6.5 ) ( 6.6 ) ( 6.7 ) ( 6.8 ) ( 6.6 ) psi 1,210 1,190 1,170 1,140 1,110

Characteristic bond stress in uncracked concrete ⁷ ^, ⁸ τ _uncr

( MPa ) ( 8.3 ) ( 8.2 ) ( 8.1 ) ( 7.9 ) ( 7.7 ) Anchor category , dry concrete – – 1 1 1 1 1 Resistance modification factor R _dry

– 1.00 1.00 1.00 1.00 1.00

Temp . range A ⁶

Temp . range B ⁶

Water-filled hole psi 1,010 1,040 1,060 1,080 1,060

Characteristic bond stress in cracked concrete ⁷ ^, ⁸ τ _cr

( MPa ) ( 7.0 ) ( 7.2 ) ( 7.3 ) ( 7.4 ) ( 7.3 ) psi 1,300 1,280 1,270 1,250 1,240

Characteristic bond stress in uncracked concrete ⁷ ^, ⁸ τ _uncr

( MPa ) ( 9.0 ) ( 8.8 ) ( 8.8 ) ( 8.6 ) ( 8.6 ) psi 700 720 730 740 730

Characteristic bond stress in cracked concrete ⁷ ^, ⁸ τ _cr

( MPa ) ( 4.8 ) ( 5.0 ) ( 5.0 ) ( 5.1 ) ( 5.0 ) psi 900 890 880 860 850

Characteristic bond stress in uncracked concrete ⁷ ^, ⁸ τ _uncr

( MPa ) ( 6.2 ) ( 6.1 ) ( 6.1 ) ( 5.9 ) ( 5.9 ) Anchor category , water-filled hole – – 3 3 3 3 3 Resistance modification factor R _wf

– 0.75 0.75 0.75 0.75 0.75

Temp . range A ⁶

Temp . range B ⁶

Underwater application psi 880 920 940 980 960

Characteristic bond stress in cracked concrete ⁷ ^, ⁸ τ _cr

( MPa ) ( 6.1 ) ( 6.3 ) ( 6.5 ) ( 6.8 ) ( 6.6 ) psi 1,130 1,140 1,140 1,140 1,130

Characteristic bond stress in uncracked concrete ⁷ ^, ⁸ τ _uncr

( MPa ) ( 7.8 ) ( 7.9 ) ( 7.9 ) ( 7.9 ) ( 7.8 ) psi 610 630 650 680 660

Characteristic bond stress in cracked concrete ⁷ ^, ⁸ τ _cr

( MPa ) ( 4.2 ) ( 4.3 ) ( 4.5 ) ( 4.7 ) ( 4.6 ) psi 780 790 780 780 780

Characteristic bond stress in uncracked concrete ⁷ ^, ⁸ τ _uncr

( MPa ) ( 5.4 ) ( 5.4 ) ( 5.4 ) ( 5.4 ) ( 5.4 ) Anchor category , underwater – – 3 3 3 3 3 Resistance modification factor R _uw

– 0.75 0.75 0.75 0.75 0.75

Resistance for seismic tension α _N _, _seis

– 0.90 0.90 0.90 0.90 0.90

1 Design information in this table is taken from ICC-ES ELC-3814 , dated April 2018 ,, table 23 and 24 , and converted for use with CSA A23.3 Annex D . 2 See figure 2 of section 3.2.4.3.1 . 3 Minimum edge distance may be reduced to 45mm provided rebar remains untorqued . See ESR-3814 section 4.1.9 . 4 For all design cases , ψ _c _, _N

= 1.0 . The appropriate coefficient for breakout resistance for cracked concrete ( k _c _, _cr ) or uncracked concrete ( k _c _, _uncr

) must be used .

5 For use with the load combinations of CSA A23.3 chapter 8 . Condition B applies where supplementary reinforcement in conformance with CSA A23.3 section D . 5.3 is not provided , or where pullout or pryout strength governs . For cases where the presence of supplementary reinforcement can be verified , the resistance modification factors associated with Condition A may be used .

6 Temperature range A : Max . short term temperature = 130 ° F ( 55 ° C ), max . long term temperature = 110 ° F ( 43 ° C ). Temperature range B : Max . short term temperature = 176 ° F ( 80 ° C ), max . long term temperature = 110 ° F ( 43 ° C ). Short term elevated concrete temperatures are those that occur over brief intervals , e . g ., as a result of diurnal cycling . Long term concrete temperatures are roughly constant over significant periods of time .

7 Bond stress values corresponding to concrete compressive stress ƒ ' _c = 2,500 psi ( 17.2 MPa ). For concrete compressive strength , ƒ ' _c

, between 2,500 psi

( 17.2 MPa ) and 8,000 psi ( 55.2 MPa ), the tabulated characteristic bond stress may be increased by a factor of ( ƒ ' _c / 2,500 ) ⁰ ^. ²⁵ [ for SI : ( ƒ ' _c

/ 17.2 ) ⁰ ^. ²⁵ ] for uncracked concrete and ( ƒ ' c

/ 2,500 ) ⁰ ^. ¹⁵ [ for SI : ( ƒ ' c / 17.2 ) ⁰ ^. ¹⁵ ] for cracked concrete . 8 For structures assigned to Seismic Design Categories C , D , E , or F , bond stress values must be multiplied by α _N _, _seis

D . 6.5.2

D . 5.3 ( c )

D . 6.5.2

D . 5.3 ( c )

D . 6.5.2

D . 5.3 ( c )
