Modular Support Systems Technical Guide, Edition 1

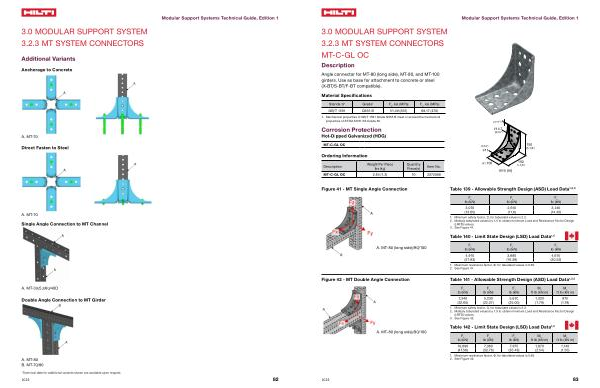

3.0 MODULAR SUPPORT SYSTEM 3.2.3 MT SYSTEM CONNECTORS
Additional Variants
Anchorage to Concrete
A. MT-70
Direct Fasten to Steel
A. MT-70 Single Angle Connection to MT Channel
A. MT-30 / 50 / 60 / 40D
Double Angle Connection to MT Girder
A. MT-80 B. MT-70 / 80
* Technical data for additional variants shown are available upon request. 2023
82
