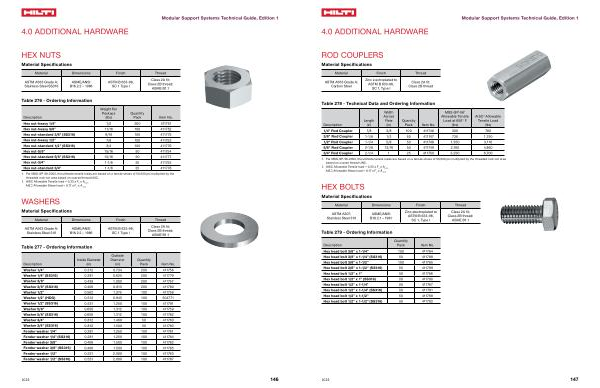

4.0 ADDITIONAL HARDWARE
ROD COUPLERS
Material Specifications
Material Finish Thread
ASTM A563 Grade A ; Carbon Steel
Zinc electroplated to ASTM B 633-98 , SC 1 , Type I
Class 2A fit ; Class 2B thread
Table 278 - Technical Data and Ordering Information
Description
Length ( in )
Width Across Flats ( in )
Quantity Pack Item No .
MSS-SP-58 1 Allowable Tensile Load at 650 ° F ( lbs )
AISC 2 Allowable Tensile Load ( lbs )
1 / 4 " Rod Coupler 7 / 8 3 / 8 100 411746 300 780 3 / 8 " Rod Coupler 1-1 / 8 1 / 2 50 411747 730 1,750 1 / 2 " Rod Coupler 1-1 / 4 5 / 8 50 411748 1,350 3,110 5 / 8 " Rod Coupler 2-1 / 8 13 / 16 50 411749 2,160 4,860 3 / 4 " Rod Coupler 2-1 / 4 1 25 411750 3,230 6,700
1 . Per MSS-SP-58-2002 , the ultimate tensile loads are based on a tensile stress of 50,000 psi multiplied by the threaded rod root area based on coarse thread UNC .
2 . AISC Allowable Tensile load = 0.33 x F u x A nom
AISC Allowable Shear load = 0.17 x F u x A nom
HEX BOLTS
Material Specifications
Material Dimensions Finish Thread
ASTM A307 ; Stainless Steel 316 |
ASME / ANSI B18.2.1 – 1981 |
Zinc electroplated to ASTM B 633-98 , SC 1 , Type I |
Class 2A fit ; Class 2B thread ; ASME B1.1 |
Table 279 - Ordering Information
Description
Quantity Pack Item No .
Hex head bolt 3 / 8 " x 1-1 / 4 " 100 411764 Hex head bolt 3 / 8 " x 1-1 / 4 " ( SS316 ) 50 411788 Hex head bolt 3 / 8 " x 1-1 / 2 " 100 411765 Hex head bolt 3 / 8 " x 1-1 / 2 " ( SS316 ) 50 411789 Hex head bolt 1 / 2 " x 1 " 50 411766 Hex head bolt 1 / 2 " x 1 " ( SS316 ) 50 411790 Hex head bolt 1 / 2 " x 1-1 / 4 " 50 411767 Hex head bolt 1 / 2 " x 1-1 / 4 " ( SS316 ) 50 411791 Hex head bolt 1 / 2 " x 1-1 / 2 " 50 411768 Hex head bolt 1 / 2 " x 1-1 / 2 " ( SS316 ) 50 411792
