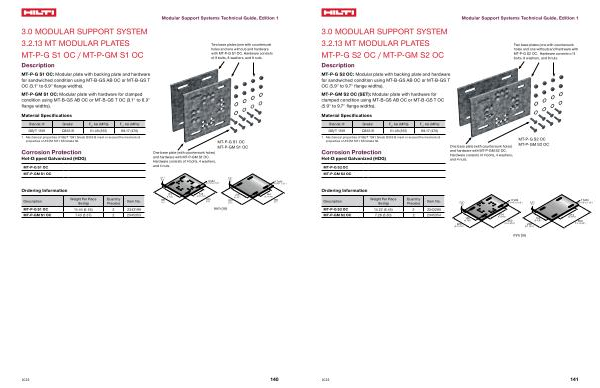

3.0 MODULAR SUPPORT SYSTEM 3.2.13 MT MODULAR PLATES MT-P-G S1 OC / MT-P-GM S1 OC
Description
MT-P-G S1 OC : Modular plate with backing plate and hardware for sandwiched condition using MT-B-GS AB OC or MT-B-GS T OC ( 3.1 " to 6.9 " flange widths ).
MT-P-GM S1 OC : Modular plate with hardware for clamped condition using MT-B-GS AB OC or MT-B-GS T OC ( 3.1 " to 6.9 " flange widths ).
Two base plates ( one with countersunk holes and one without ) and hardware with MT-P-G S1 OC . Hardware consists of 8 bolts , 8 washers , and 8 nuts .
Material Specifications
Standard 1 Grade 1 F y , ksi ( MPa ) F u
, ksi ( MPa ) GB / T 1591 Q355 B 51.49 ( 355 ) 68.17 ( 470 )
1 . Mechanical properties of GB / T 1591 Grade Q355 B meet or exceed the mechanical properties of ASTM 1011 SS Grade 50 .
Corrosion Protection
Hot-Dipped Galvanized ( HDG )
MT-P-G S1 OC MT-P-GM S1 OC
Ordering Information
Description
Weight Per Piece lbs ( kg )
Quantity Piece ( s )
Item No .
MT-P-G S1 OC 14.44 ( 6.55 ) 2 2343199 MT-P-GM S1 OC 7.43 ( 3.37 ) 2 2345353
One base plate ( with countersunk holes ) and hardware with MT-P-GM S1 OC . Hardware consists of 4 bolts , 4 washers , and 4 nuts .
���� “) ��
��� ������ “)
��� ��� “)
��� �������� “)
��� ��� “)
����� ������ “ x ����� “)
MT-P-G S1 OC MT-P-GM S1 OC
mm ( in )
���� “) ��
��� ������ “)
��� ��� “)
��� �������� “)
��� ��� “)
����� ������ “ x ����� “)
