Modular Support Systems Technical Guide, Edition 1
3.0 MODULAR SUPPORT SYSTEM 3.2.11 MT MEDIA FIXATION MT-FA-G M10-3 / 8 " / M12-1 / 2 " / M16-5 / 8 " / M22-7 / 8 " / M24-1 "

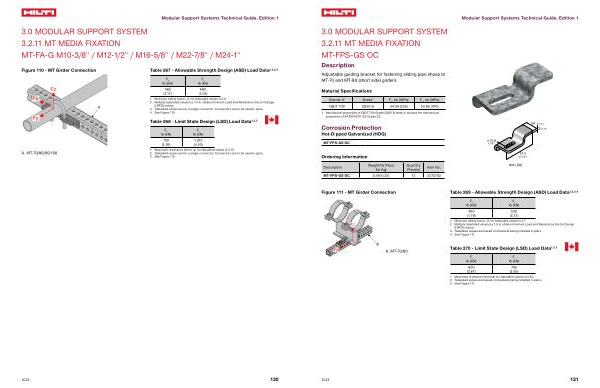

Figure 110- MT Girder Connection Table 267- Allowable Strength Design( ASD) Load Data 1, 2, 3, 4
F x lb( kN)
F z lb( kN)
485
680
( 2.17)
( 3.03)
1. Minimum safety factor, Ω, for tabulated values is 2.0. 2. Multiply tabulated values by 1.5 to obtain minimum Load and Resistance Factor Design
( LRFD) values. 3. Tabulated values are for a single connector. Connectors are to be used in pairs. 4. See Figure 110.
Table 268- Limit State Design( LSD) Load Data 1, 2, 3
A. MT-70 / 80 / 90 / 100
F x lb( kN)
F z lb( kN)
730
1,010
( 3.26)
( 4.50)
1. Maximum resistance factor, ϕ, for tabulated values is 0.75. 2. Tabulated values are for a single connector. Connectors are to be used in pairs. 3. See Figure 110.
