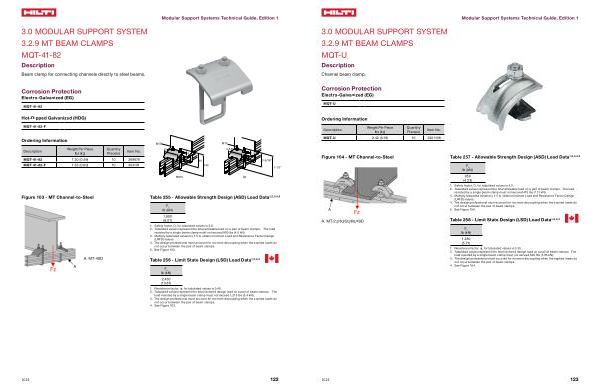

Modular Support Systems Technical Guide , Edition 1
3.0 MODULAR SUPPORT SYSTEM 3.2.9 MT BEAM CLAMPS MQT-U
Description
Channel beam clamp .
Corrosion Protection
Electro-Galvanized ( EG )
MQT-U
Ordering Information
Description
Weight Per Piece lbs ( kg )
Quantity Piece ( s )
Item No . MQT-U 0.42 ( 0.19 ) 10 2301108
Figure 104 - MT Channel-to-Steel
Table 257 - Allowable Strength Design ( ASD ) Load Data 1 , 2 , 3 , 4 , 5
F z lb ( kN )
950 ( 4.23 )
1 . Safety factor , Ω , for tabulated values is 4.0 . 2 . Tabulated values represent the total allowable load on a pair of beam clamps . The load resisted by a single beam clamp must not exceed 475 lbs ( 2.11 kN ). 3 . Multiply tabulated values by 1.5 to obtain minimum Load and Resistance Factor Design
( LRFD ) values . 4 . The design professional must account for moment decoupling when the applied loads do not occur between the pair of beam clamps . 5 . See Figure 104 .
A . MT-20 / 30 / 50 / 60 / 40D
Table 258 - Limit State Design ( LSD ) Load Data 1 , 2 , 3 , 4
F z lb ( kN )
1,280 ( 5.71 )
1 . Resistance factor , ϕ , for tabulated values is 0.35 . 2 . Tabulated values represent the total factored design load on a pair of beam clamps . The load resisted by a single beam clamp must not exceed 640 lbs ( 2.85 kN ). 3 . The design professional must account for moment decoupling when the applied loads do not occur between the pair of beam clamps . 4 . See Figure 104 .
2023
123
