Modular Support Systems Technical Guide , Edition 1
3.0 MODULAR SUPPORT SYSTEM |
|
|
|
|
|
|
|
|

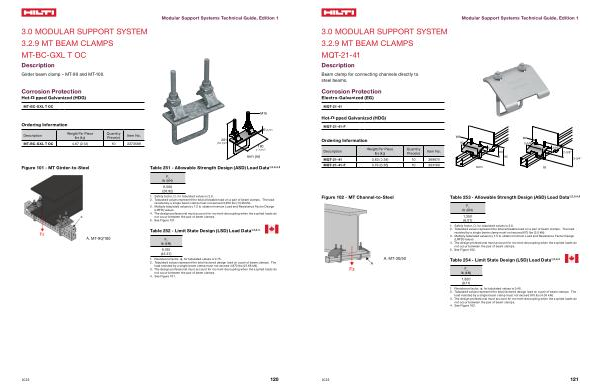

3.2.9 MT BEAM CLAMPS |
|
|
|
|
|
|
|
|
MQT-21-41 |
|
|
|
|
|
|
|
|
Description |
|
|
|
|
|
|
|
|
Beam clamp for connecting channels directly to steel beams . |
|
|
|
|
|
|
|
|
|
Corrosion Protection
Electro-Galvanized ( EG )
|
|
|
|
|
|
|
|
|
MQT-21-41 |
|
|
|
|
|
|
|
|
Hot-Dipped Galvanized ( HDG ) |
|
|
|
|
|
|
|
|
MQT-21-41-F |
|
|
|
|
|
|
|
|
|
Ordering Information
Description
Weight Per Piece lbs ( kg )
Quantity Piece ( s )
Item No .
MQT-21-41 0.83 ( 0.38 ) 10 369675
MQT-21-41-F 0.79 ( 0.36 ) 10 304190
|
��
��
|
mm |
� |
��
��
|
��
������
|
in |
����� |
������
������
|
Figure 102 - MT Channel-to-Steel
Table 253 - Allowable Strength Design ( ASD ) Load Data 1 , 2 , 3 , 4 , 5
F z lb ( kN )
1,350 ( 6.01 )
1 . Safety factor , Ω , for tabulated values is 3.0 . 2 . Tabulated values represent the total allowable load on a pair of beam clamps . The load resisted by a single beam clamp must not exceed 675 lbs ( 3.0 kN ). 3 . Multiply tabulated values by 1.5 to obtain minimum Load and Resistance Factor Design
( LRFD ) values . 4 . The design professional must account for moment decoupling when the applied loads do not occur between the pair of beam clamps . 5 . See Figure 102 .
A . MT-30 / 50
Table 254 - Limit State Design ( LSD ) Load Data 1 , 2 , 3 , 4
F z lb ( kN )
1,820 ( 8.11 )
1 . Resistance factor , ϕ , for tabulated values is 0.45 . 2 . Tabulated values represent the total factored design load on a pair of beam clamps . The load resisted by a single beam clamp must not exceed 910 lbs ( 4.05 kN ). 3 . The design professional must account for moment decoupling when the applied loads do not occur between the pair of beam clamps . 4 . See Figure 102 .
2023
121
