Modular Support Systems Technical Guide , Edition 1

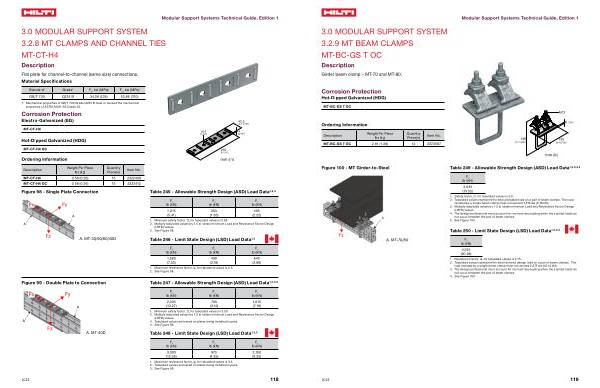

3.0 MODULAR SUPPORT SYSTEM 3.2.9 MT BEAM CLAMPS MT-BC-GS T OC
Description
Girder beam clamp – MT-70 and MT-80 .
Corrosion Protection
Hot-Dipped Galvanized ( HDG )
MT-BC-GS T OC ���
Ordering Information
Description
Weight Per Piece lbs ( kg )
Quantity Piece ( s )
Item No . MT-BC-GS T OC 2.81 ( 1.28 ) 12 2273587
���
�������� “)
��� �������� “)
������ “) mm ( in )
Figure 100 - MT Girder-to-Steel
Table 249 - Allowable Strength Design ( ASD ) Load Data 1 , 2 , 3 , 4 , 5
F z lb ( kN )
3,035 ( 13.52 )
1 . Safety factor , Ω , for tabulated values is 2.0 . 2 . Tabulated values represent the total allowable load on a pair of beam clamps . The load resisted by a single beam clamp must not exceed 1,515 lbs ( 6.76 kN ). 3 . Multiply tabulated values by 1.5 to obtain minimum Load and Resistance Factor Design
( LRFD ) values . 4 . The design professional must account for moment decoupling when the applied loads do not occur between the pair of beam clamps . 5 . See Figure 100 .
Table 250 - Limit State Design ( LSD ) Load Data 1 , 2 , 3 , 4
A . MT-70 / 80
F z lb ( kN )
4,555 ( 20.28 )
1 . Resistance factor , ϕ , for tabulated values is 0.75 . 2 . Tabulated values represent the total factored design load on a pair of beam clamps . The load resisted by a single beam clamp must not exceed 2,275 lbs ( 10.14 kN ). 3 . The design professional must account for moment decoupling when the applied loads do not occur between the pair of beam clamps . 4 . See Figure 100 .
2023
119
