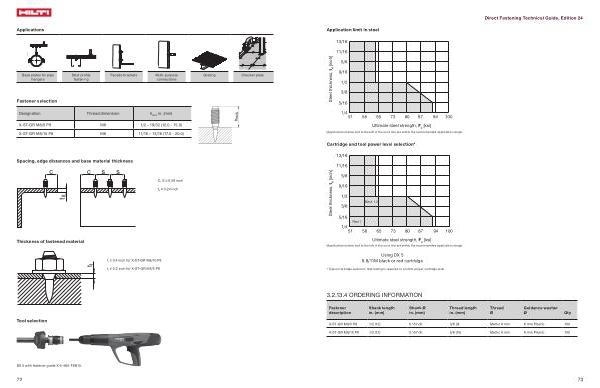

Direct Fastening Technical Guide , Edition 24
Application limit in steel
13 / 16 11 / 16
Steel thickness , t II
[ inch ]
5 / 8 9 / 16 1 / 2 3 / 8
5 / 16 1 / 4
51 58 65 73 80 87 94 100 Ultimate steel strength , F u
[ ksi ]
( Applications below and to the left of the solid line are within the recommended application range )
Cartridge and tool power level selection *
13 / 16 11 / 16
Steel thickness , t II
[ inch ]
5 / 8 9 / 16 1 / 2 3 / 8
5 / 16
Black 1-3
Red 1
1 / 4
51 58 65 73 80 87 94 100 Ultimate steel strength , F u
[ ksi ]
( Applications below and to the left of the solid line are within the recommended application range )
Using DX 5 6.8 / 11M black or red cartridge
* Typical cartridge selection . Site testing is required to confirm proper cartridge level .
3.2.13.4 ORDERING INFORMATION
Fastener description |
Shank length in . ( mm ) |
Shank Ø in . ( mm ) |
Thread length in . ( mm ) |
Thread Ø |
Guidance washer Ø |
Qty |
X-ST-GR M8 / 5 P8 1 / 2 ( 12 ) 0.157 ( 4 ) 3 / 8 ( 9 ) Metric 8 mm 8 mm Plastic 100 X-ST-GR M8 / 10 P8 1 / 2 ( 12 ) 0.157 ( 4 ) 5 / 8 ( 15 ) Metric 8 mm 8 mm Plastic 100
73
