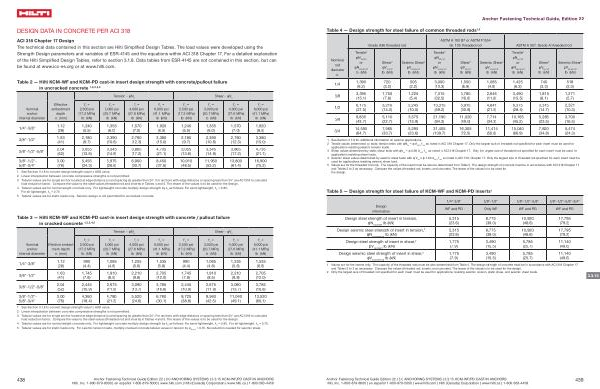

DESIGN DATA IN CONCRETE PER ACI 318
ACI 318 Chapter 17 Design The technical data contained in this section are Hilti Simplified Design Tables . The load values were developed using the Strength Design parameters and variables of ESR-4145 and the equations within ACI 318 Chapter 17 . For a detailed explanation of the Hilti Simplified Design Tables , refer to section 3.1.8 . Data tables from ESR-4145 are not contained in this section , but can be found at www . icc-es . org or at www . hilti . com .
Table 2 — Hilti KCM-WF and KCM-PD cast-in insert design strength with concrete / pullout failure in uncracked concrete 1 , 2 , 3 , 4 , 5
Tension - φN n Shear - φV n
Nominal anchor internal diameter |
Effective embedment depth in . ( mm ) |
f ' c = 2,500 psi ( 17.2 MPa ) lb ( kN ) |
f ' c = 3,000 psi ( 20.7 MPa ) lb ( kN ) |
f ' c = 4,000 psi ( 27.6 MPa ) lb ( kN ) |
f ' c = 6,000 psi ( 41.1 MPa ) lb ( kN ) |
f ' c = 2,500 psi ( 17.2 MPa ) lb ( kN ) |
f ' c = 3,000 psi ( 20.7 MPa ) lb ( kN ) |
f ' c = 4,000 psi ( 27.6 MPa ) lb ( kN ) |
f ' c = 6,000 psi ( 41.1 MPa ) lb ( kN ) |
1 / 4 " -3 / 8 "
3 / 8 " -1 / 2 "
3 / 8 " -1 / 2 " -5 / 8 "
3 / 8 " -1 / 2 " - 5 / 8 " -3 / 4 "
1.12 ( 28 )
1.63 ( 41 )
2.04 ( 52 )
3.00 ( 76 )
1,240 ( 5.5 )
2,180 ( 9.7 )
3,055 ( 13.6 )
5,455 ( 24.3 )
1,355 ( 6.0 )
2,390 ( 10.6 )
3,345 ( 14.9 )
5,975 ( 26.6 )
1,570 ( 7.0 )
2,760 ( 12.3 )
3,865 ( 17.2 )
6,900 ( 30.7 )
1 See Section 3.1.8 to convert design strength value to ASD value . 2 Linear interpolation between concrete compressive strengths is not permitted .
3 Tabular values are for single anchor located at edge distance ( c ) and spacing ( s ) greater than 24 ". For anchors with edge distance or spacing less than 24 " use ACI 318 to calculate load reduction factor . Compare the value to the steel values ( threaded rod and inserts ) in Tables 4 and 5 . The lesser of the values is to be used for the design .
4 Tabular values are for normal weight concrete only . For lightweight concrete multiply design strength by λ a as follows : For sand-lightweight , λ a
= 0.85 .
For all-lightweight , λ a
= 0.75 5 Tabular values are for static loads only . Seismic design is not permitted for uncracked concrete .
1,920 ( 8.5 )
3,380 ( 15.0 )
4,735 ( 21.1 )
8,450 ( 37.6 )
1,240 ( 5.5 )
2,180 ( 9.7 )
3,055 ( 13.6 )
10,910 ( 48.5 )
1,355 ( 6.0 )
2,390 ( 10.6 )
3,345 ( 14.9 )
11,950 ( 53.2 )
1,570 ( 7.0 )
2,760 ( 12.3 )
3,865 ( 17.2 )
13,800 ( 61.4 )
1,920 ( 8.5 )
3,380 ( 15.0 )
4,735 ( 21.1 )
16,900 ( 75.2 )
Table 3 — Hilti KCM-WF and KCM-PD cast-in insert design strength with concrete / pullout failure in cracked concrete 1 , 2 , 3 , 4 , 5
Tension - φN n Shear - φV n
|
Nominal anchor internal diameter
Effective embedment depth in . ( mm )
|
f ' c = 2,500 psi ( 17.2 MPa ) lb ( kN ) |
f ' c = 3,000 psi ( 20.7 MPa ) lb ( kN ) |
f ' c = 4,000 psi ( 27.6 MPa ) lb ( kN ) |
f ' c = 6,000 psi ( 41.1 MPa ) lb ( kN ) |
f ' c = 2,500 psi ( 17.2 MPa ) lb ( kN ) |
f ' c = 3,000 psi ( 20.7 MPa ) lb ( kN ) |
f ' c = 4,000 psi ( 27.6 MPa ) lb ( kN ) |
f ' c = 6,000 psi ( 41.1 MPa ) lb ( kN ) |
1 / 4 " -3 / 8 "
3 / 8 " -1 / 2 "
3 / 8 " -1 / 2 " -5 / 8 "
3 / 8 " -1 / 2 " - 5 / 8 " -3 / 4 "
1.12 ( 28 )
1.63 ( 41 )
2.04 ( 52 )
3.00 ( 76 )
990 ( 4.4 )
1,745 ( 7.8 )
2,445 ( 10.9 )
4,360 ( 19.4 )
1,085 ( 4.8 )
1,910 ( 8.5 )
2,675 ( 11.9 )
4,780 ( 21.3 )
1,255 ( 5.6 )
2,210 ( 9.8 )
3,090 ( 13.7 )
5,520 ( 24.6 )
1 See Section 3.1.8 to convert design strength value to ASD value . 2 Linear interpolation between concrete compressive strengths is not permitted .
3 Tabular values are for single anchor located at edge distance ( c ) and spacing ( s ) greater than 24 ". For anchors with edge distance or spacing less than 24 " use ACI 318 to calculate load reduction factor . Compare the value to the steel values ( threaded rod and inserts ) in Tables 4 and 5 . The lesser of the values is to be used for the design .
4 Tabular values are for normal weight concrete only . For lightweight concrete multiply design strength by λ a as follows : For sand-lightweight , λ a
= 0.85 . For all-lightweight , λ a = 0.75 .
5 Tabular values are for static loads only . For seismic tension loads , multiply cracked concrete tabular values in tension by α N , seis = 0.75 . No reduction needed for seismic shear .
1,535 ( 6.8 )
2,705 ( 12.0 )
3,785 ( 16.8 )
6,760 ( 30.1 )
990 ( 4.4 )
1,745 ( 7.8 )
2,445 ( 10.9 )
8,725 ( 38.8 )
1,085 ( 4.8 )
1,910 ( 8.5 )
2,675 ( 11.9 )
9,560 ( 42.5 )
1,255 ( 5.6 )
2,210 ( 9.8 )
3,090 ( 13.7 )
11,040 ( 49.1 )
1,535 ( 6.8 )
2,705 ( 12.0 )
3,785 ( 16.8 )
13,520 ( 60.1 )
