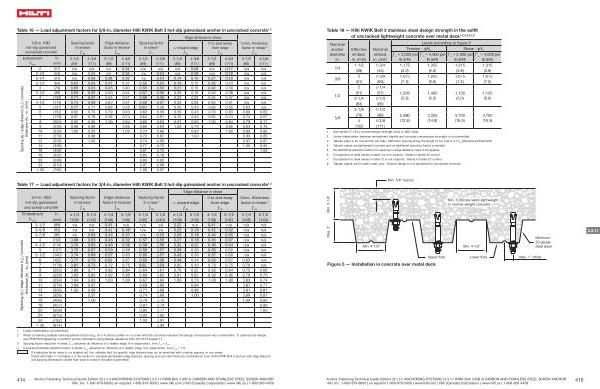

Table 18 — Hilti KWIK Bolt 3 stainless steel design strength in the soffit of uncracked lightweight concrete over metal deck 1 , 2 , 3 , 4 , 5 , 7 , 8
Nominal anchor diameter in .
1 / 4
3 / 8
1 / 2
5 / 8
Effective embed . in . ( mm )
Nominal embed . in . ( mm )
Loads according to figure 5 Tension - фN n
Shear - фV n ƒ ' c = 4,000 psi ƒ ' c
= 3,000 psi lb ( kN ) lb ( kN ) ƒ ' c
= 3,000 psi lb ( kN ) ƒ ' c
= 4,000 psi lb ( kN )
1-1 / 2 |
1-3 / 4 |
1,175 |
1,355 |
1,315 |
1,315 |
( 38 ) |
( 44 ) |
( 5.2 ) |
( 6.0 ) |
( 5.8 ) |
( 5.8 ) |
2 |
2-3 / 8 |
1,675 |
1,935 |
1,675 |
1,675 |
( 51 ) |
( 60 ) |
( 7.5 ) |
( 8.6 ) |
( 7.5 ) |
( 7.5 ) |
2 |
2-1 / 4 |
|
|
|
|
( 51 ) |
( 57 ) |
1,265 |
1,460 |
1,135 |
1,135 |
3-1 / 4 |
3-1 / 2 |
( 5.6 ) |
( 6.5 ) |
( 5.0 ) |
( 5.0 ) |
( 83 ) |
( 89 ) |
|
|
|
|
3-1 / 8 |
3-1 / 2 |
|
|
|
|
( 79 ) |
( 89 ) |
4 |
4-3 / 8 |
( 102 ) |
( 111 ) |
2,880 ( 12.8 )
1 See section 3.1.8 to convert design strength value to ASD value .
3,325 ( 14.8 )
3,700 ( 16.5 )
2 Linear interpolation between embedment depths and concrete compressive strengths is not permitted .
3,700 ( 16.5 )
3 Tabular value is for one anchor per flute . Minimum spacing along the length of the flute is 3 x h ef
( effective embedment ).
4 Tabular values are lightweight concrete and no additional reduction factor is needed . 5 No additional reduction factors for spacing or edge distance need to be applied . 6 Comparison to steel values in table 4 is not required . Values in tables 26 control . 7 Comparison to steel values in table 12 is not required . Values in tables 27 control . 8 Tabular values are for static loads only . Seismic design is not permitted for uncracked concrete .
3.3.11
Figure 5 — Installation in concrete over metal deck
Anchor Fastening Technical Guide Edition 22 | 3.0 ANCHORING SYSTEMS | 3.3.11 KWIK Bolt 3 ( KB 3 ) CARBON AND STAINLESS STEEL SCREW ANCHOR Hilti , Inc . 1-800-879-8000 | en español 1-800-879-5000 | www . hilti . com | Hilti ( Canada ) Corporation | www . hilti . ca | 1-800-363-4458
415
