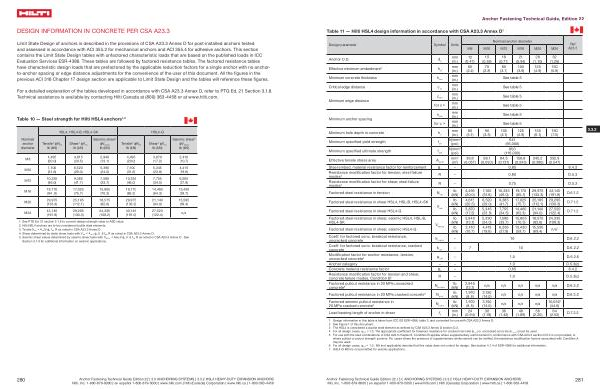

DESIGN INFORMATION IN CONCRETE PER CSA A23.3
Limit State Design of anchors is described in the provisions of CSA A23.3 Annex D for post-installed anchors tested and assessed in accordance with ACI 355.2 for mechanical anchors and ACI 355.4 for adhesive anchors . This section contains the Limit State Design tables with unfactored characteristic loads that are based on the published loads in ICC Evaluation Services ESR-4386 . These tables are followed by factored resistance tables . The factored resistance tables have characteristic design loads that are prefactored by the applicable reduction factors for a single anchor with no anchorto-anchor spacing or edge distance adjustments for the convenience of the user of this document . All the figures in the previous ACI 318 Chapter 17 design section are applicable to Limit State Design and the tables will reference these figures .
For a detailed explanation of the tables developed in accordance with CSA A23.3 Annex D , refer to PTG Ed . 21 Section 3.1.8 . Technical assistance is available by contacting Hilti Canada at ( 800 ) 363-4458 or at www . hilti . com .
Table 10 — Steel strength for Hilti HSL4 anchors 1 , 2
HSL4 , HSL4-B , HSL4-SK HSL4-G
Nominal anchor diameter |
Tensile 3 фN sa lb ( kN ) |
Shear 4 фV sa lb ( kN ) |
Seismic shear 5
фV sa , eq lb ( kN )
|
Tensile 3 фN sa lb ( kN ) |
Shear 4 фV sa lb ( kN ) |
Seismic shear 5
фV sa , eq lb ( kN )
|
M8 |
4,495 ( 20.0 ) |
4,615 ( 20.5 ) |
2,940 ( 13.1 ) |
4,495 ( 20.0 ) |
3,870 ( 17.2 ) |
2,410 ( 10.7 ) |
M10 |
7,100 ( 31.6 ) |
6,520 ( 29.0 ) |
5,390 ( 24.0 ) |
7,100 ( 31.6 ) |
5,345 ( 23.8 ) |
4,415 ( 19.6 ) |
M12 |
10,335 ( 46.0 ) |
9,385 ( 41.7 ) |
7,580 ( 33.7 ) |
10.335 ( 46.0 ) |
7,755 ( 34.5 ) |
6,265 ( 27.9 ) |
M16 |
19,170 ( 94 . 0 ) |
17,025 ( 75.7 ) |
15,805 ( 70.3 ) |
19,170 ( 85.3 ) |
14,460 ( 64.3 ) |
13,430 ( 59.7 ) |
M20 |
29,975 ( 133.3 ) |
25,195 ( 112.1 ) |
18,575 ( 82.6 ) |
29,975 ( 133.3 ) |
21,140 ( 94.0 ) |
15,595 ( 69.4 ) |
M24 |
43,145 ( 191.9 ) |
29,295 ( 130.3 ) |
24,335 ( 108.2 ) |
43,145 ( 191.0 ) |
27,520 ( 122.4 ) |
n / a |
1 . See PTG Ed . 21 section 3.1.8 to convert design strength value to ASD value . 2 . Hilti HSL4 anchors are to be considered ductile steel elements . 3 . Tensile N sar = A se , N ф s f uta R as noted in CSA A23.3 Annex D . 4 . Shear determined by static shear tests with V sar < A se , V ф s 0 . 6 f uta R as noted in CSA A23.3 Annex D . 5 . Seismic shear values determined by seismic shear tests with V sar , eq < Ase , V ф s 0 . 6 f uta R as noted in CSA A23.3 Annex D . See
Section 3.1.8 for additional information on seismic applications .
