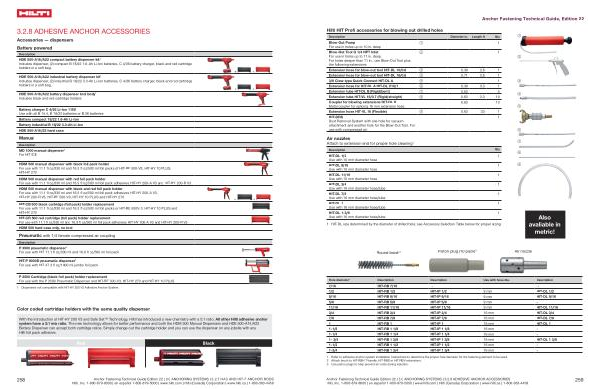

3.2.8 ADHESIVE ANCHOR ACCESSORIES
Accessories — dispensers Battery powered
Description
HDE 500-A18 / A22 compact battery dispenser kit 1 Includes dispenser , ( 2 ) compact B 18 / 22 1.6-Ah Li-Ion batteries , C 4 / 36 battery charger , black and red cartridge holders in a soft bag .
HDE 500-A18 / A22 industrial battery dispenser kit 1 Includes dispenser , ( 2 ) industrial B 18 / 22 3.3-Ah Li-Ion batteries , C 4 / 36 battery charger , black and red cartridge holders in a soft bag .
HDE 500-A18 / A22 battery dispenser tool body 1 Includes black and red cartridge holders
+ +
+ +
Battery charger C 4 / 36 Li-Ion 115V Use with all B 14.4 , B 18 / 22 batteries or B 36 batteries
Battery compact 18 / 22 1.6-Ah Li-Ion Battery industrial B 18 / 22 3.3-Ah Li-Ion HDE 500-A18 / 22 hard case
Manual
Description
MD 1000 manual dispenser 1 For HIT ICE
HDM 500 manual dispenser with black foil pack holder For use with 11.1 fl oz / 330 ml and 16.9 fl oz / 500 ml foil packs of HIT-RE 500-V3 , HIT-HY 10 PLUS , HIT-HY 270
HDM 500 manual dispenser with red foil pack holder For use with 11.1 fl oz / 330 ml and 16.9 fl oz / 500 ml foil pack adhesives HIT-HY 200-A V3 and HIT-HY 200-R V3
HDM 500 manual dispenser with black and red foil pack holder For use with 11.1 fl oz / 330 ml and 16.9 fl oz / 500 ml foil pack adhesives HIT-HY 200-A V3 , HIT-HY 200-R V3 , HIT-RE 500-V3 , HIT-HY 10 PLUS and HIT-HY 270
HIT-CB 500 black cartridge ( foil pack ) holder replacement For use with 11.1 fl oz / 330 ml and 16.9 fl oz / 500 ml foil packs or HIT-RE 500V-3 , HIT-HY 10 PLUS and HIT-HY 270
HIT-CR 500 red cartridge ( foil pack ) holder replacement For use with 11.1 fl oz / 330 ml and 16.9 fl oz / 500 ml foil pack adhesives HIT-HY 200-A V3 and HIT-HY 200-R V3
HDM 500 hard case only , no tool
+ +
Pneumatic with 1 / 4 female compressed air coupling
Description
P 3500 pneumatic dispenser 1 For use with HIT 11.1 fl oz / 330 ml and 16.9 fl oz / 500 ml foil pack
HIT-P 8000D pneumatic dispenser 1 For use with HIT 47.3 fl oz / 1400 ml jumbo foil pack
P 3500 Cartridge ( black foil pack ) holder replacement For use with the P 3500 Pneumatic Dispenser and HIT-RE 500-V3 , HIT-HY 270 and HIT-HY 10 PLUS
1 Dispensers not compatible with HIT-HY 200 V3 Adhesive Anchor System .
Color coded cartridge holders with the same quality dispenser
With the introduction of HIT-HY 200 V3 and Safe Set™ Technology , Hilti has introduced a new chemistry with a 5:1 ratio . All other Hilti adhesive anchor system have a 3:1 mix ratio . The new technology allows for better performance and both the HDM 500 Manual Dispensers and HDE 500-A18 / A22 Battery Dispenser can accept both cartridge ratios . Simply change out the cartridge holder and you can use the dispenser on any jobsite with any Hilti foil pack adhesive .
Red
Black
