Anchor Fastening Technical Guide , Edition 22

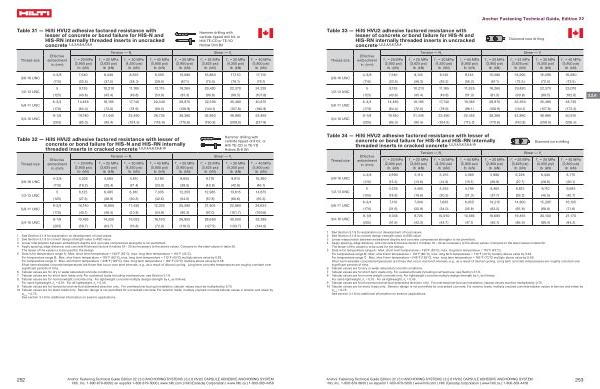

Table 33 — Hilti HVU2 adhesive factored resistance with lesser of concrete or bond failure for HIS-N and HIS-RN internally threaded inserts in uncracked concrete 1 , 2 , 3 , 4 , 5 , 6 , 7 , 8 , 9
Diamond core drilling
Thread size
3 / 8-16 UNC
1 / 2-13 UNC
5 / 8-11 UNC
3 / 4-10 UNC
Effective embedment in . ( mm ) f ́c = 20 MPa ( 2,900 psi ) lb ( kN ) f ́c = 25 MPa ( 3,625 psi ) lb ( kN )
Tension — N r
f ́c = 30 MPa ( 4,350 psi ) lb ( kN ) f ́c = 40 MPa ( 5,800 psi ) lb ( kN ) f ́c = 20 MPa ( 2,900 psi ) lb ( kN ) f ́c = 25 MPa ( 3,625 psi ) lb ( kN )
Shear — V r
f ́c = 30 MPa ( 4,350 psi ) lb ( kN ) f ́c = 40 MPa ( 5,800 psi ) lb ( kN )
4-3 / 8 7,540 8,145 8,145 8,145 15,080 16,290 16,290 16,290 ( 110 ) ( 33.5 ) ( 36.2 ) ( 36.2 ) ( 36.2 ) ( 67.1 ) ( 72.5 ) ( 72.5 ) ( 72.5 )
5 9,135 10,210 11,185 11,535 18,265 20,420 22,370 23,070 ( 125 ) ( 40.6 ) ( 45.4 ) ( 49.8 ) ( 51.3 ) ( 81.3 ) ( 90.8 ) ( 99.5 ) ( 102.6 ) 6-3 / 4 14,485 16,195 17,740 19,365 28,970 32,390 35,480 38,735 ( 170 ) ( 64.4 ) ( 72.0 ) ( 78.9 ) ( 86.1 ) ( 128.9 ) ( 144.1 ) ( 157.8 ) ( 172.3 ) 8-1 / 8 19,180 21,445 23,490 25,455 38,360 42,890 46,985 50,910 ( 205 ) ( 85.3 ) ( 95.4 ) ( 104.5 ) ( 113.2 ) ( 170.6 ) ( 190.8 ) ( 209.0 ) ( 226.5 )
3.2.6
Table 34 — Hilti HVU2 adhesive factored resistance with lesser of concrete or bond failure for HIS-N and HIS-RN internally threaded inserts in cracked concrete 1 , 2 , 3 , 4 , 5 , 6 , 7 , 8 , 9 , 10
Diamond core drilling
Thread size
3 / 8-16 UNC
1 / 2-13 UNC
5 / 8-11 UNC
3 / 4-10 UNC
Effective embedment in . ( mm ) f ́c = 20 MPa ( 2,900 psi ) lb ( kN ) f ́c = 25 MPa ( 3,625 psi ) lb ( kN )
Tension — N r
f ́c = 30 MPa ( 4,350 psi ) lb ( kN ) f ́c = 40 MPa ( 5,800 psi ) lb ( kN ) f ́c = 20 MPa ( 2,900 psi ) lb ( kN ) f ́c = 25 MPa ( 3,625 psi ) lb ( kN )
Shear — V r
f ́c = 30 MPa ( 4,350 psi ) lb ( kN ) f ́c = 40 MPa ( 5,800 psi ) lb ( kN )
4-3 / 8 2,990 3,110 3,215 3,385 5,980 6,225 6,430 6,775 ( 110 ) ( 13.3 ) ( 13.8 ) ( 14.3 ) ( 15.1 ) ( 26.6 ) ( 27.7 ) ( 28.6 ) ( 30.1 )
5 4,235 4,405 4,555 4,795 8,465 8,815 9,110 9,595 ( 125 ) ( 18.8 ) ( 19.6 ) ( 20.3 ) ( 21.3 ) ( 37.7 ) ( 39.2 ) ( 40.5 ) ( 42.7 ) 6-3 / 4 7,110 7,400 7,645 8,055 14,215 14,800 15,295 16,105 ( 170 ) ( 31.6 ) ( 32.9 ) ( 34.0 ) ( 35.8 ) ( 63.2 ) ( 65.8 ) ( 68.0 ) ( 71.6 ) 8-1 / 8 9,345 9,725 10,050 10,585 18,685 19,455 20,100 21,170 ( 205 ) ( 41.6 ) ( 43.3 ) ( 44.7 ) ( 47.1 ) ( 83.1 ) ( 86.5 ) ( 89.4 ) ( 94.2 )
1 See Section 3.1.8 for explanation on development of load values . 2 See Section 3.1.8 to convert design strength value to ASD value . 3 Linear interpolation between embedment depths and concrete compressive strengths is not permitted . 4 Apply spacing , edge distance , and concrete thickness factors in tables 19 – 20 as necessary to the above values . Compare to the steel values in table 30 .
The lesser of the values is to be used for the design .
5 Data is for temperature range A : Max . short term temperature = 130 ° F ( 55 ° C ), max . long term temperature = 110 ° F ( 43 ° C ). For temperature range B : Max . short term temperature = 176 ° F ( 80 ° C ), max . long term temperature = 110 ° F ( 43 ° C ) multiply above value by 0.94 . For temperature range C : Max . short term temperature = 248 ° F ( 120 ° C ), max . long term temperature = 162 ° F ( 72 ° C ) multiply above value by 0.60 . Short term elevated concrete temperatures are those that occur over brief intervals , e . g ., as a result of diurnal cycling . Long term concrete temperatures are roughly constant over significant periods of time . 6 Tabular values are for dry or water saturated concrete conditions . 7 Tabular values are for short term loads only . For sustained loads including overhead use , see Section 3.1.8 . 8 Tabular values are for normal weight concrete only . For lightweight concrete multiply design strength by λ a as follows :
For sand-lightweight , λ a = 0.51 . For all-lightweight , λ a
= 0.45 . 9 Tabular values are for horizontal and vertical downward direction only . For overhead ( vertical up ) installation , tabular values must be multiplied by 0.70 . 10 Tabular values are for static loads only . Seismic design is not permitted for uncracked concrete . For seismic loads , multiply cracked concrete tabular values in tension and shear by
α seis
= 0.75 . See section 3.1.8 for additional information on seismic applications .
Anchor Fastening Technical Guide Edition 22 | 3.0 ANCHORING SYSTEMS | 3.2.6 HVU2 CAPSULE ADHESIVE ANCHORING SYSTEM Hilti , Inc . 1-800-879-8000 | en español 1-800-879-5000 | www . hilti . com | Hilti ( Canada ) Corporation | www . hilti . ca | 1-800-363-4458
253
