Anchor Fastening Technical Guide , Edition 22

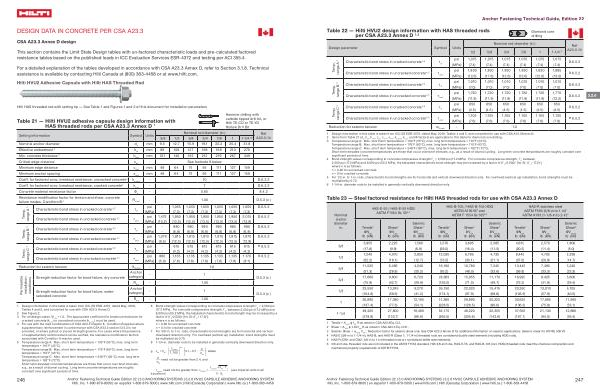

Table 22 — Hilti HVU2 design information with HAS threaded rods per CSA A23.3 Annex D 1 , 2
Diamond core drilling
Design parameter Symbol Units
Nominal rod diameter ( in .) 1 / 2 5 / 8 3 / 4 7 / 8 1 1-1 / 4 6
Ref
A23.3-14
Temp . range A 3
Temp . range B 3
Temp . range C 3 psi 1,075 1,075 1,075 1,075 1,075 1,075
Characteristic bond stress in cracked concrete 4 , 5 τ cr ( MPa ) ( 7.4 ) ( 7.4 ) ( 7.4 ) ( 7.4 ) ( 7.4 ) ( 7.4 ) psi 1,830 1,830 1,830 1,830 1,830 1,885
Characteristic bond stress in uncracked concrete 4 , 5 τ uncr
( MPa ) ( 12.6 ) ( 12.6 ) ( 12.6 ) ( 12.6 ) ( 12.6 ) ( 13.0 ) psi 1,010 1,010 1,010 1,010 1,010 1,010
Characteristic bond stress in cracked concrete 4 , 5 τ cr
( MPa ) ( 7.0 ) ( 7.0 ) ( 7.0 ) ( 7.0 ) ( 7.0 ) ( 7.0 ) psi 1,720 1,720 1,720 1,720 1,720 1,770
Characteristic bond stress in uncracked concrete 4 , 5 τ uncr
( MPa ) ( 11.9 ) ( 11.9 ) ( 11.9 ) ( 11.9 ) ( 11.9 ) ( 12.2 ) psi 650 650 650 650 650 650
Characteristic bond stress in cracked concrete 4 , 5 τ cr
( MPa ) ( 4.5 ) ( 4.5 ) ( 4.5 ) ( 4.5 ) ( 4.5 ) ( 4.5 ) psi 1,105 1,105 1,105 1,105 1,105 1,135
Characteristic bond stress in uncracked concrete 4 , 5 τ uncr ( MPa ) ( 7.6 ) ( 7.6 ) ( 7.6 ) ( 7.6 ) ( 7.6 ) ( 7.8 )
Reduction for seismic tension α N , seis - 1.0
D . 6.5.2
D . 6.5.2
D . 6.5.2
D . 6.5.2
D . 6.5.2
D . 6.5.2
3.2.6
1 Design information in this table is taken from ICC-ES ESR-4372 , dated May , 2019 , Tables 4 and 5 , and converted for use with CSA A23.3Annex D . 2 Items from Table 21 ( d a
, h ef , h min
, c ac , c min
, s min
, k c , uncr , k c , cr
, and Ф factors ) are applicable to this table for diamond core drilling .
3 Temperature range A : Max . short term temperature = 130 ° F ( 55 ° C ), max . long term temperature = 110 ° F ( 43 ° C ). Temperature range B : Max . short term temperature = 176 ° F ( 80 ° C ), max . long term temperature = 110 ° F ( 43 ° C ). Temperature range C : Max . short term temperature = 248 ° F ( 120 ° C ), max . long term temperature = 162 ° F ( 72 ° C ). Short term elevated concrete temperatures are those that occur over brief intervals , e . g ., as a result of diurnal cycling . Long term concrete temperatures are roughly constant over significant periods of time .
4 Bond strength values corresponding to concrete compressive strength f ́c = 2,500 psi ( 17.2 MPa ). For concrete compressive strength , f ́c , between 2,500 psi ( 17.2 MPa ) and 8,000 psi ( 55.2 MPa ), the tabulated characteristic bond strength may be increased by a factor of ( f ́c / 2,500 ) n [ for SI : ( f ́c / 17.2 ) n ]. where n is as follows : n = 0.26 for uncracked concrete n = 0 for cracked concrete
5 For 1 / 2-in . to 1-in . rods , characteristic bond strengths are for horizontal and vertical downward direction only . For overhead ( vertical up ) installation , bond strengths must be multiplied by 0.70 . 6 1-1 / 4-in . diameter rods to be installed in generally vertically downward direction only .
Table 23 — Steel factored resistance for Hilti HAS threaded rods for use with CSA A23.3 Annex D
Nominal anchor diameter in . |
Tensile 1
ФN sar lb ( kN )
HAS-E-55 / HAS-E-55 HDG ASTM F1554 Gr . 55 4 , 6
Shear 2
ФV sar lb ( kN )
Seismic
Shear 3
ФV sar , eq lb ( kN )
|
Tensile 1
ФN sar lb ( kN )
HAS-B-105 / HAS-B-105 HDG ASTM A193 B7 and ASTM F 1554 Gr . 105 4 , 6
Shear 2
ФV sar lb ( kN )
Seismic
Shear 3
ФV sar , eq lb ( kN )
|
Tensile 1
ФN sar lb ( kN )
HAS-R stainless steel ASTM F593 ( 3 / 8-in to 1-in ) 5 ASTM A193 ( 1-1 / 8-in to 2-in ) 4
Shear 2
ФV sar lb ( kN )
Seismic
Shear 3
ФV sar , eq lb ( kN )
|
3 / 8
1 / 2
5 / 8
3 / 4
7 / 8
1
1-1 / 4
3,955 2,225 1,560 6,570 3,695 2,585 4,610 2,570 1,800 ( 17.6 ) ( 9.9 ) ( 6.9 ) ( 29.2 ) ( 16.4 ) ( 11.5 ) ( 20.5 ) ( 11.4 ) ( 8.0 ) 7,240 4,070 2,850 12,035 6,765 4,735 8,445 4,705 3,295 ( 32.2 ) ( 18.1 ) ( 12.7 ) ( 53.5 ) ( 30.1 ) ( 21.1 ) ( 37.6 ) ( 20.9 ) ( 14.7 ) 11,525 6,485 4,540 19,160 10,780 7,545 13,445 7,490 5,245 ( 51.3 ) ( 28.8 ) ( 20.2 ) ( 85.2 ) ( 48.0 ) ( 33.6 ) ( 59.8 ) ( 33.3 ) ( 23.3 ) 17,060 9,600 6,720 28,365 15,955 11,170 16,920 9,425 6,600 ( 75.9 ) ( 42.7 ) ( 29.9 ) ( 126.2 ) ( 71.0 ) ( 49.7 ) ( 75.3 ) ( 41.9 ) ( 29.4 ) 23,550 13,245 9,270 39,150 22,020 15,415 23,350 13,010 9,105 ( 104.8 ) ( 58.9 ) ( 41.2 ) ( 174.1 ) ( 97.9 ) ( 68.6 ) ( 103.9 ) ( 57.9 ) ( 40.5 ) 30,890 17,380 12,165 51,360 28,890 20,225 30,635 17,065 11,945 ( 137.4 ) ( 77.3 ) ( 54.1 ) ( 228.5 ) ( 128.5 ) ( 90.0 ) ( 136.3 ) ( 75.9 ) ( 53.1 ) 49,425 27,800 19,460 82,175 46,220 32,355 37,565 21,130 12,680 ( 219.9 ) ( 123.7 ) ( 86.6 ) ( 365.5 ) ( 205.6 ) ( 143.9 ) ( 167.1 ) ( 94.0 ) ( 56.4 )
1 Tensile = A se , N ϕ f uta
R as noted in CSA A23.3Eq . D . 2 .
2 Shear = A se , V ϕ 0.60 f uta
R as noted in CSA A23.3 Eq . D . 31 .
3 Seismic Shear = α V , seis
V sar
: Reduction factor for seismic shear only . See CSA A23.3 Annex D for additional information on seismic applications . Seismic shear for HIT-RE 500 V3 4 HAS-E ( 3 / 8-in to 1-1 / 4-in ), HAS-B , and HAS-R ( Class 1 ; 1-1 / 4-in ) threaded rods are considered ductile steel elements ( including HDG rods ). 5 HAS-R ( CW1 and CW2 ; 3 / 8-in to 1-in ) threaded rods are considered brittle steel elements . 6 3 / 8-inch dia . threaded rods are not included in the ASTM F1554 standard . Hilti 3 / 8-inch dia . HAS-E-55 , and HAS-B-105 ( incl . HDG ) threaded rods meet the chemical composition and mechanical property requirements of ASTM F1554 .
Anchor Fastening Technical Guide Edition 22 | 3.0 ANCHORING SYSTEMS | 3.2.6 HVU2 CAPSULE ADHESIVE ANCHORING SYSTEM Hilti , Inc . 1-800-879-8000 | en español 1-800-879-5000 | www . hilti . com | Hilti ( Canada ) Corporation | www . hilti . ca | 1-800-363-4458
247
